ADDERLink - XD-522-DP-PAIR
High Resolution DisplayPort Extender Set with Audio & USB 2.0 via CAT cable
Tillverkarens artikelnummer:
XD522-DP-PAIR
Vårt artikelnummer:
490361
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produkten är uttjänt!
Product information "ADDERLink - XD-522-DP-PAIR"

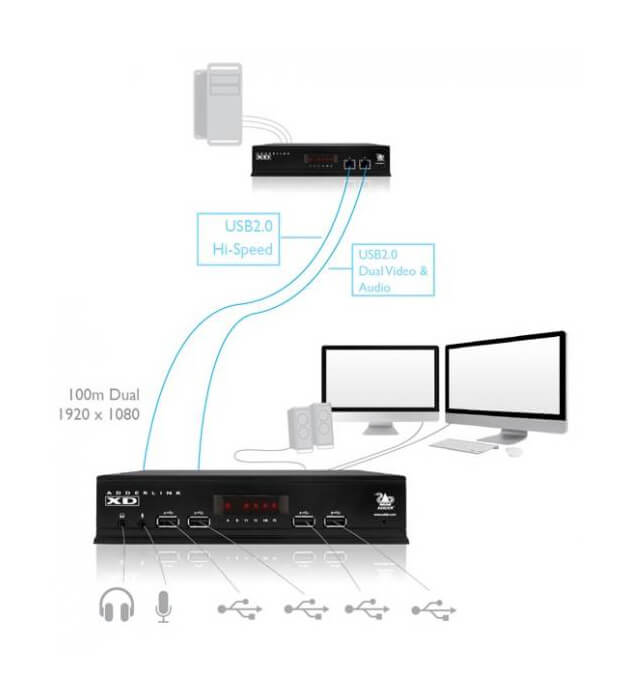

The powerful ADDERLink XD522 KVM extender (keyboard, video, mouse) allows you to place your critical computer hardware in a secure and temperature-controlled environment away from the user workstation while maintaining the user experience on the desktop. It can transmit either two 1920 x 1200 video streams at 60 Hz or one higher resolution video stream (3840 x 2160 at 30 Hz or 2560 x 1600 at 60 Hz), digital audio (S / PDIF), analogue audio, Hi-Speed USB 2.0 and USB 2.0 (full) over a CATx cable.
Optional accessories:
- Set consisting of transmitter and receiver
Optional accessories:
- RMK4S/RMK4D: two 19" rack-mount brackets and four screws
- VCSD17: DisplayPort cable
- VSC24: USB cable 2m (type A to B)
- VSC22: Audio cable 2m (3.5mm)
| Graphic Port: | DisplayPort |
|---|---|
| Keyboard & Mouse: | USB |
| Option: | Audio, Point-to-Point |
| Screen: | Multi |
Features
Intelligent EDID management
With advanced display identification data, the actual characteristics of the monitor can be returned to the computer.
Plug-and-Play
The ADDERLink XD522 extender is delivered in a zero configuration state, allowing for true plug-and-play installation without the need to download drivers or software.
Display Port Audio and S / PDIF Support
Via 3.5 mm optical jack (dual use with analogue audio via mini-Toslink)
HD quality analogue audio
24-bit stereo channel at 96 kHz, available to transfer audio for line-in / line-out from local to remote. Use cases for microphone inputs and headphones are also supported.
Extension distances
150 m extension distance for a single 1920 x 1080 screen; 100 m extension distance for two 1920 x 1200 screens or a single high resolution screen to 2560 x 1600
Support for a single high dynamic range monitor
Up to 2560 x 1600 at 60 Hz and 10 bit colours
USB 2.0 High Speed
For mass storage devices as well as keyboard, mouse tablet and touch
Intelligent EDID management
With advanced display identification data, the actual characteristics of the monitor can be returned to the computer.
Plug-and-Play
The ADDERLink XD522 extender is delivered in a zero configuration state, allowing for true plug-and-play installation without the need to download drivers or software.
Display Port Audio and S / PDIF Support
Via 3.5 mm optical jack (dual use with analogue audio via mini-Toslink)
HD quality analogue audio
24-bit stereo channel at 96 kHz, available to transfer audio for line-in / line-out from local to remote. Use cases for microphone inputs and headphones are also supported.
Extension distances
150 m extension distance for a single 1920 x 1080 screen; 100 m extension distance for two 1920 x 1200 screens or a single high resolution screen to 2560 x 1600
Support for a single high dynamic range monitor
Up to 2560 x 1600 at 60 Hz and 10 bit colours
USB 2.0 High Speed
For mass storage devices as well as keyboard, mouse tablet and touch
Technical details
Approvals / Compliance
Support for all computers with display port, USB, audio, RS232 - as needed
Display port interface
System supports maximum 3840 x 2180 @ 30 Hz (8 bit) or 2560 x 1600 @ 60 Hz on a single monitor or 1920 x 1200 @ 60 Hz (10 bit). Supports two monitors 1920 x 1200 @ 60 Hz (8 bit). The receiver unit can operate HDMI or DVI monitors with the correct adapter. Content protection is not supported.
USB 2.0
Supports up to six USB 2.0 devices (low or full speed). HID devices are supported on ports marked "A" and isochronous devices (i.e. USB audio or video devices) are supported on the high-speed connection marked "B".
Port Audio
The system provides analogue stereo audio (line-in, line-out) and supports microphone input and headphones. It also provides S / PDIF (optical input) via a 3.5 mm jack connector (mini-Toslink). The audio path of the display port can contain up to eight channels of uncompressed 24-bit PCM audio at 192 kHz with pulse code modulation, or encapsulate compressed audio formats in the audio stream. Supported compressed formats: DRA, Dolby MAT, DTS HD.
RS232
RS232 can be transferred between units via the option port to a maximum baud rate of 115K2.
Software compatibility
All known operating systems
Cable guidelines
Recommended cables are CAT7 shielded foil twisted pairs:
Environment

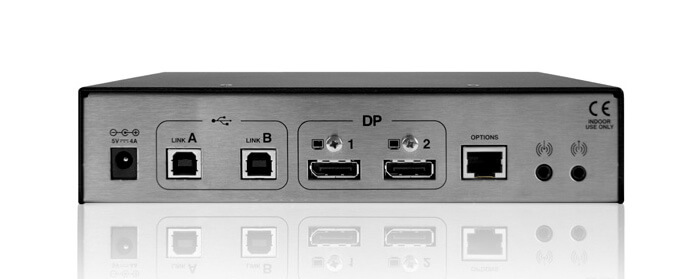

Display connector x 2, Audio 3.5 mm input, Audio 3.5 mm output, USB type B x 2, RS232 10p10c option connector
Connections receiver (Rx)

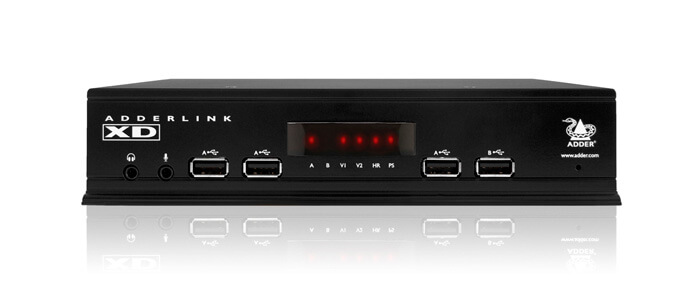

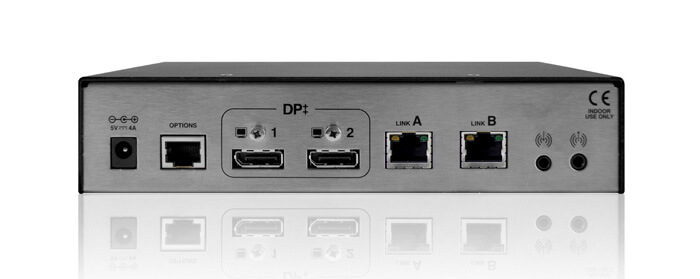

Display connector ++ x 2, audio 3.5 mm input, audio 3.5 mm output, headphones 3.5 mm output, microphone 3.5 mm input, USB type A x 4, RS232 10p10c option connector
Physical design

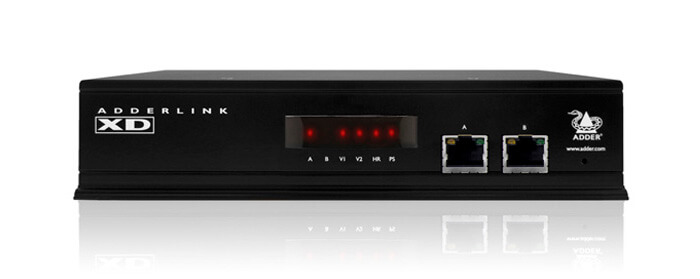

Local unit (Tx):
2.5 mm DC socket (power supply included), 100-240 V AC 50/60 Hz, 0.8 A, input to power supply unit, 5 VDC 20 W output from power supply unit
Approvals / Compliance
- CE
- FCC
- RCM
- UL
Support for all computers with display port, USB, audio, RS232 - as needed
Display port interface
System supports maximum 3840 x 2180 @ 30 Hz (8 bit) or 2560 x 1600 @ 60 Hz on a single monitor or 1920 x 1200 @ 60 Hz (10 bit). Supports two monitors 1920 x 1200 @ 60 Hz (8 bit). The receiver unit can operate HDMI or DVI monitors with the correct adapter. Content protection is not supported.
USB 2.0
Supports up to six USB 2.0 devices (low or full speed). HID devices are supported on ports marked "A" and isochronous devices (i.e. USB audio or video devices) are supported on the high-speed connection marked "B".
Port Audio
The system provides analogue stereo audio (line-in, line-out) and supports microphone input and headphones. It also provides S / PDIF (optical input) via a 3.5 mm jack connector (mini-Toslink). The audio path of the display port can contain up to eight channels of uncompressed 24-bit PCM audio at 192 kHz with pulse code modulation, or encapsulate compressed audio formats in the audio stream. Supported compressed formats: DRA, Dolby MAT, DTS HD.
RS232
RS232 can be transferred between units via the option port to a maximum baud rate of 115K2.
Software compatibility
All known operating systems
Cable guidelines
Recommended cables are CAT7 shielded foil twisted pairs:
- Daetwyler 7702 Flexible Patch Cable
- Daetwyler 7120 Bulk Cable
Environment
- Operating temperature: 0 to 40 ° C / 32 to 104 ° F.
- Storage temperature: -20 to 70ºC / -4 to 158ºF
- Humidity: 10% to 90% (non-condensing)
- Altitude: 2,000 m
Display connector x 2, Audio 3.5 mm input, Audio 3.5 mm output, USB type B x 2, RS232 10p10c option connector
Connections receiver (Rx)
Display connector ++ x 2, audio 3.5 mm input, audio 3.5 mm output, headphones 3.5 mm output, microphone 3.5 mm input, USB type A x 4, RS232 10p10c option connector
Physical design
Local unit (Tx):
- 1U compact housing, robust metal construction
- 198 mm (7.92 in. (W), 44 mm (1.76 in. (H)), 120 mm (4.8 in. (D))
- 750 g
2.5 mm DC socket (power supply included), 100-240 V AC 50/60 Hz, 0.8 A, input to power supply unit, 5 VDC 20 W output from power supply unit
