ADDERLink - XD642P-DP
Dual 4K DisplayPort Extender Pair
Tillverkarens artikelnummer:
XD642P-DP
Vårt artikelnummer:
490506
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Product information "ADDERLink - XD642P-DP"
The ADDERLink XD642 is a high-performance KVMA extender (keyboard, video, mouse and audio) that provides reliable, real-time access to critical computers - regardless of location, while maintaining the user's desktop experience.
Optional accessories:

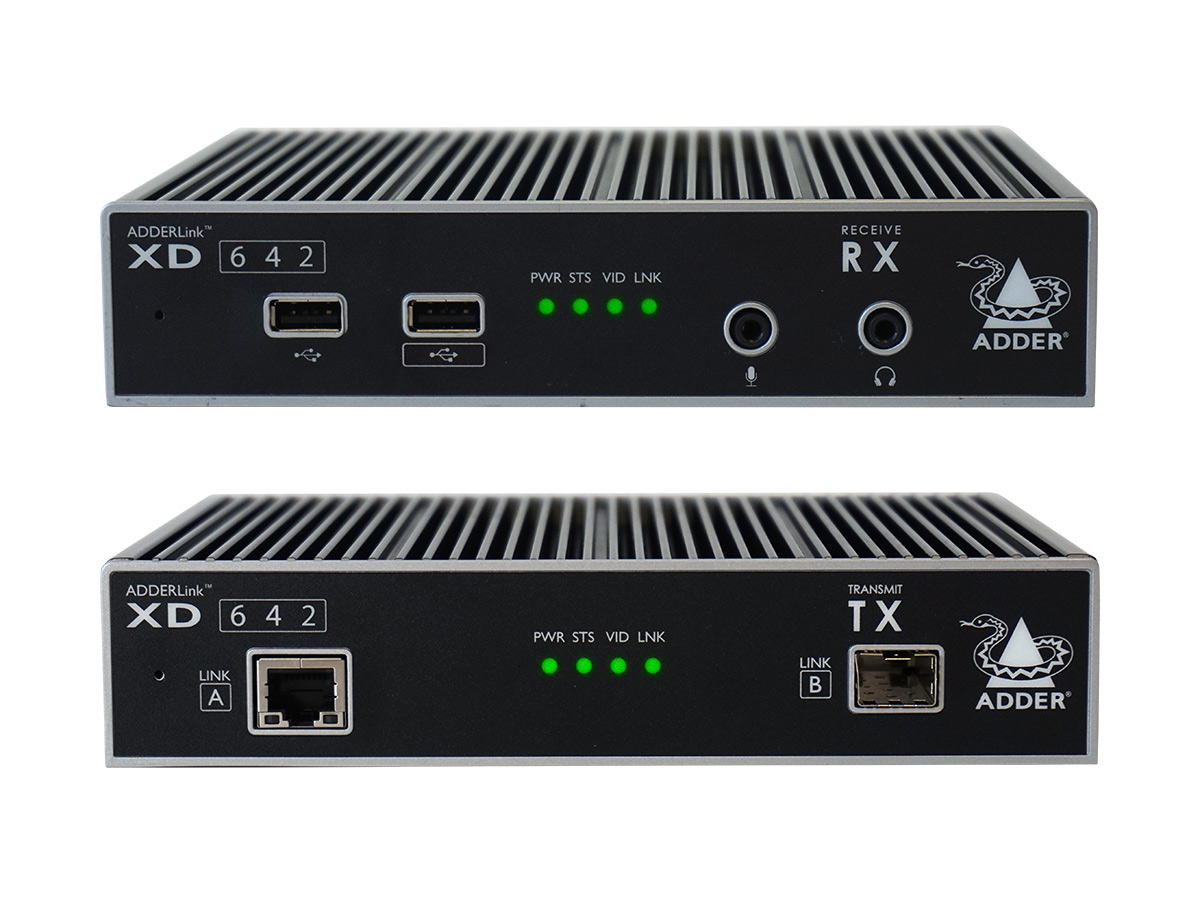

- Set consisting of transmitter and receiver
- Dual-head 4K60 video, USB 2.0 and audio
- Point-to-point protocol for extremely low latency.
- Flexibility between copper and fibre connection.
- Adder USB emulation ensures reliable computer start-up.
Optional accessories:
- RMK15: Dual ADDERLink XD rack mount bracket plus two retaining clips.
- SFP+-MM-LC-10G: SFP+ module with LC connectors (multi mode)
- SFP+-SM-LC-10G: SFP+ module with LC connectors (single mode)
| Keyboard & Mouse: | USB |
|---|---|
| Option: | Point-to-Point |
| Screen: | Multi |
Features
High-resolution video, real-time control
The system supports resolutions up to 4096 x 2160 at 60 Hz with 8-bit colours and 4:4:4 chroma sampling.

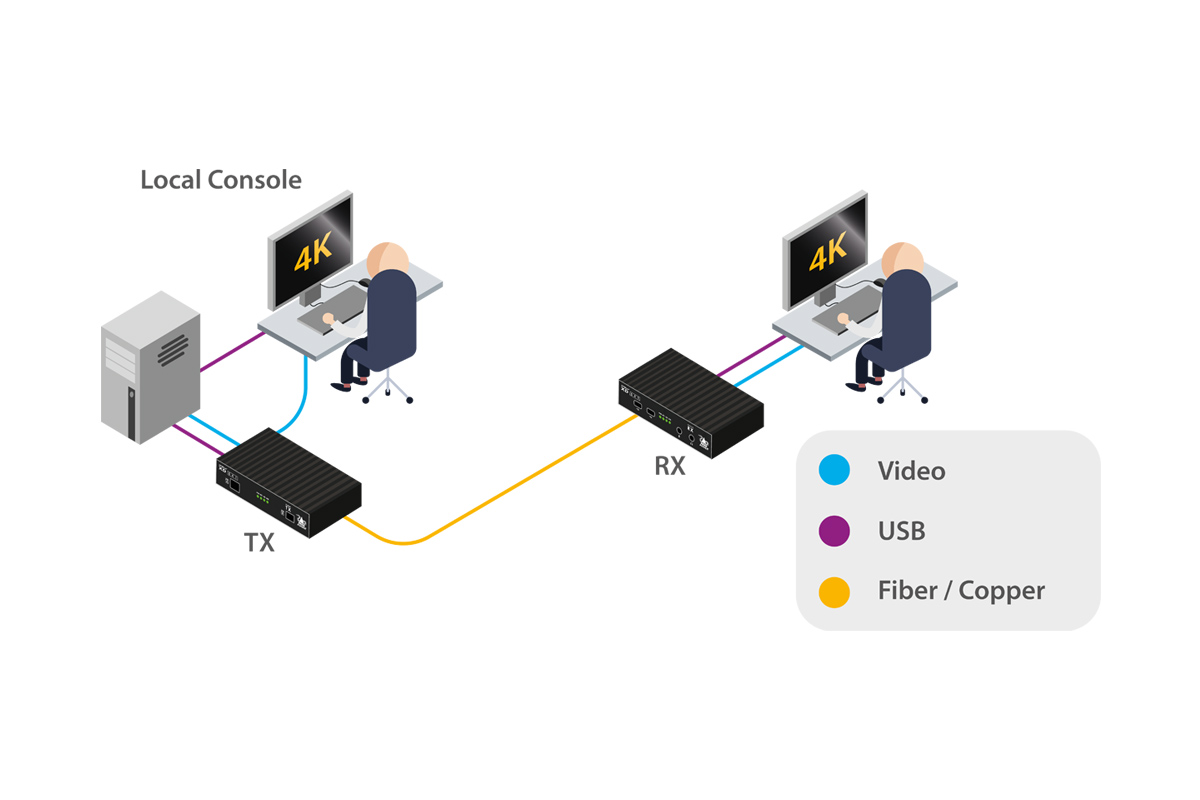

Single cable Video, audio, USB HID (Human Interface Device), transparent high-speed USB and RS232 signals are transmitted over a single CATx or fibre optic cable.
Extension distances of up to 4 km
The ADDERLink XD642 supports both copper and fibre interfaces. It offers a range of up to 100 m over a CAT6 cable connection and up to 4 km over a fibre connection.
Emulated USB 2.0
Enables connection of full and low speed USB-HID from mouse and keyboard to graphics tablets and jog shuttles.
Transparent USB 2.0
Mass storage devices and isochronous devices such as webcams and audio headsets can be used via the high-speed transparent USB2.0 port.
EDID management
The system features intelligent EDID management, which allows the actual characteristics of the monitor to be fed back to the computer.
Plug and Play
The ADDERLink XD642 extender is supplied in a zero configuration. Specify that it works without the need for drivers or software as soon as it is connected.
Digital Audio-
HD audio quality (stereo audio, 24-bit sampling at 96 kHz) is available for line-in / out, microphone and headphones or speakers.
Serial communication
RS232 can be transmitted between units with an RTS / CTS flow control to a maximum baud rate of 115K2.
High-resolution video, real-time control
The system supports resolutions up to 4096 x 2160 at 60 Hz with 8-bit colours and 4:4:4 chroma sampling.
Single cable Video, audio, USB HID (Human Interface Device), transparent high-speed USB and RS232 signals are transmitted over a single CATx or fibre optic cable.
Extension distances of up to 4 km
The ADDERLink XD642 supports both copper and fibre interfaces. It offers a range of up to 100 m over a CAT6 cable connection and up to 4 km over a fibre connection.
Emulated USB 2.0
Enables connection of full and low speed USB-HID from mouse and keyboard to graphics tablets and jog shuttles.
Transparent USB 2.0
Mass storage devices and isochronous devices such as webcams and audio headsets can be used via the high-speed transparent USB2.0 port.
EDID management
The system features intelligent EDID management, which allows the actual characteristics of the monitor to be fed back to the computer.
Plug and Play
The ADDERLink XD642 extender is supplied in a zero configuration. Specify that it works without the need for drivers or software as soon as it is connected.
Digital Audio-
- Video: Encapsulates two channels of 192 kHz 24-bit PCM (Pulse Code Modulation) audio with each video signal.
- USB: Up to two channels of 24-bit PCM audio with 96 kHz sampling.
HD audio quality (stereo audio, 24-bit sampling at 96 kHz) is available for line-in / out, microphone and headphones or speakers.
Serial communication
RS232 can be transmitted between units with an RTS / CTS flow control to a maximum baud rate of 115K2.
Techncial details
Video resolutions
The system supports resolutions of up to 4096 x 2160 at 60 Hz
Software compatibility
All known operating systems. No drivers required.
Expansion technology
5 Gbit / s CATx or 10 Gbit / s fibre with ultra-low latency adaptive video stream compression.
Connections - Transmitter (Tx)
Robust metal construction
0ºC to 40ºC / 32ºF to 104ºF
Storage temperature
-10ºC to 50ºC / 14ºF to 122ºF
Humidity
0% to 80% (non-condensing)
Approvals
CE, FCC
Video resolutions
The system supports resolutions of up to 4096 x 2160 at 60 Hz
Software compatibility
All known operating systems. No drivers required.
Expansion technology
5 Gbit / s CATx or 10 Gbit / s fibre with ultra-low latency adaptive video stream compression.

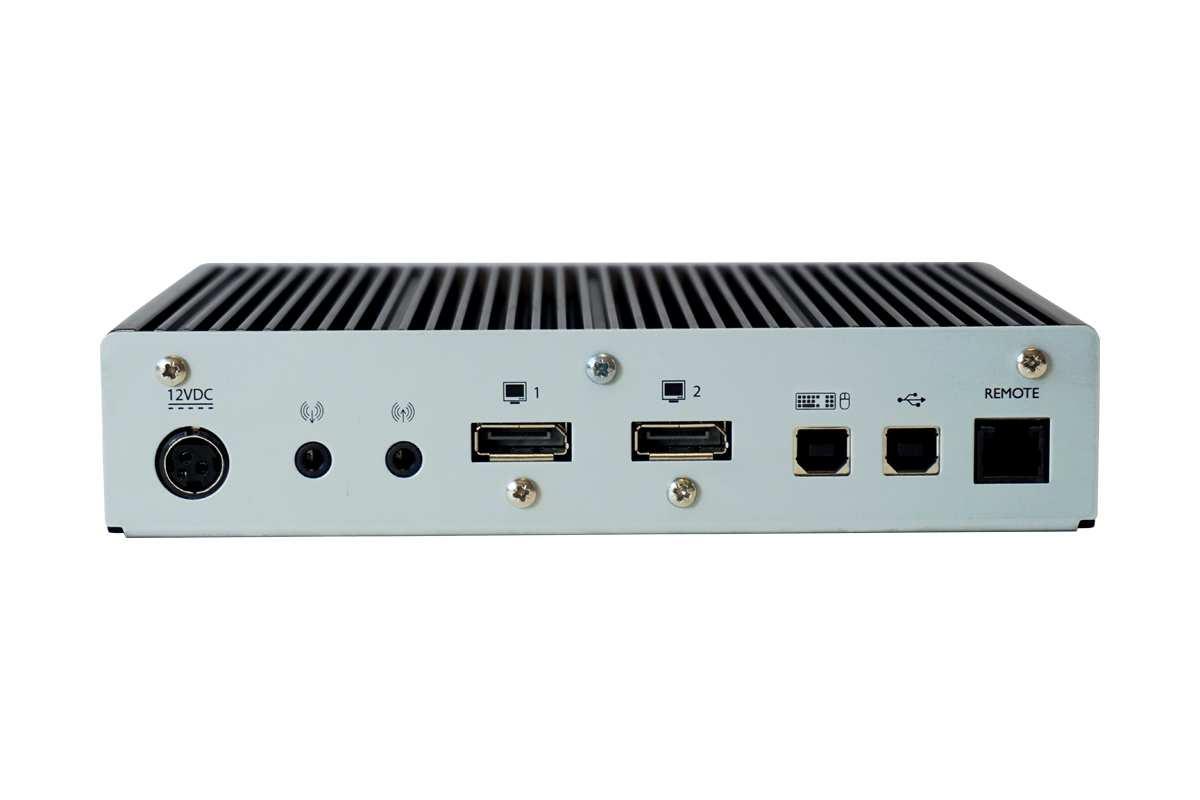

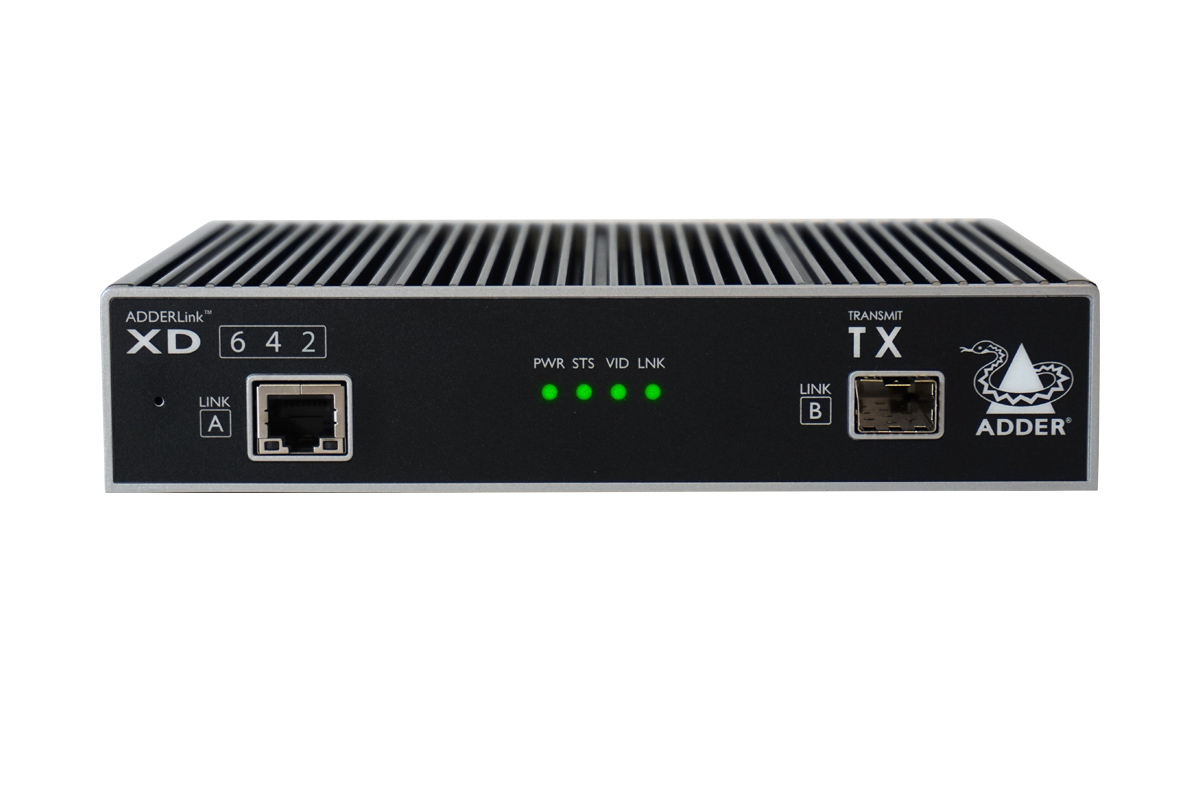

Connections - Transmitter (Tx)
- 4 x three-colour status LEDs
- 2 x DisplayPort in
- 1 x USB2.0 type B for HID
- 1 x USB2.0 type B for high speed
- Switch analogue audio on and off
- RJ12 serial interface
- RJ45 and SFP + ports

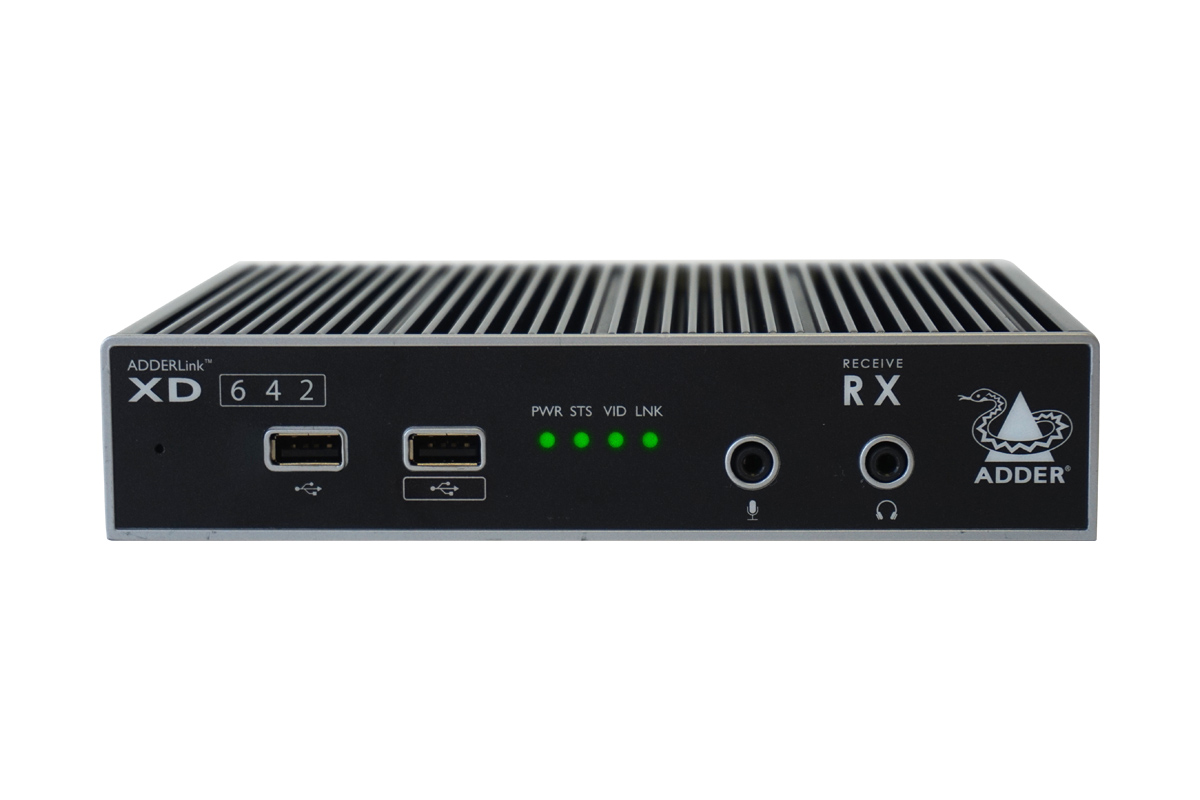

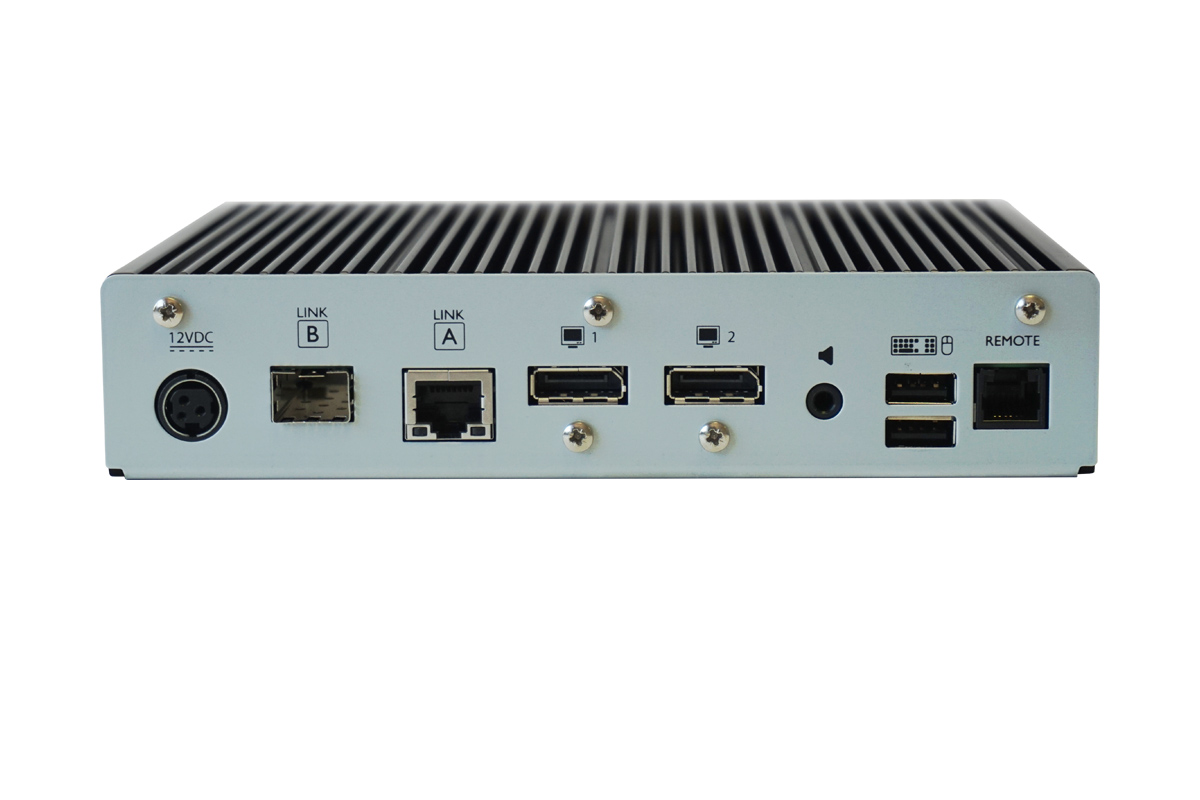

- 4 x three-colour status LEDs
- 2 x DisplayPort out
- 3 x USB 2.0 full speed type A.
- 1 x USB2.0 transparent high speed type A.
- Microphone input, headset and speaker output
- RJ12 serial port
- RJ45 and SFP ports
Robust metal construction
- Tx and Rx: 186 mm (W), 39 mm (1.54 in.) (h), 148 mm (5.83 in.) (d)
- Tx: 1.29 kg
- RX: 1.24 kg
- 100-240 VAC, 47 / 63Hz
- 12 VDC 18 W output from power supply unit
0ºC to 40ºC / 32ºF to 104ºF
Storage temperature
-10ºC to 50ºC / 14ºF to 122ºF
Humidity
0% to 80% (non-condensing)
Approvals
CE, FCC
