TERZ NITE-RS8-1100
8 Port Unmanaged Industrial Ethernet Switch with only 22.5 mm installation width
Listpris:
1 250,55 kr*
Pris för återförsäljare - Inloggning
991 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
Tillverkarens artikelnummer:
NITE-RS8-1100
Vårt artikelnummer:
340047
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "TERZ NITE-RS8-1100"
TERZ NITE-RS Fast Ethernet

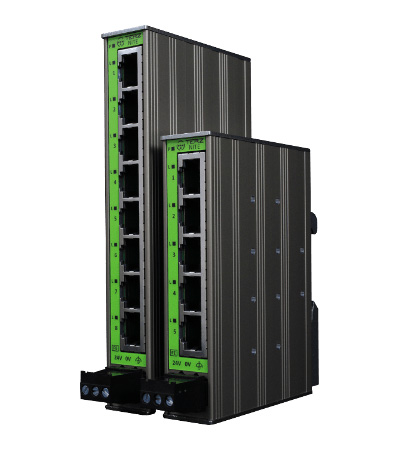

With a width of only 22.5 mm and a mounting depth of 75 mm, the Industrial Ethernet Switches impress with their extremely slim and high-quality metal housings.
The highly optimised Plug & Play switches operate in an energy-saving manner and enable simple and fast commissioning and mounting on the top-hat rail. The switches have been specially developed for industrial and IoT applications and support priority-controlled packet forwarding (Quality of Service) for maximum efficiency in data communication. The 24 VAC/VDC power supply with reverse polarity protection and inrush current limitation, the extended temperature range from -40°C to +70°C and a dielectric strength of 2.25 kVDC guarantee safe and reliable operation. The NITE-RS switches require the world's smallest installation space in control cabinets including the voltage terminal.
With a width of only 22.5 mm and a mounting depth of 75 mm, the Industrial Ethernet Switches impress with their extremely slim and high-quality metal housings.
The highly optimised Plug & Play switches operate in an energy-saving manner and enable simple and fast commissioning and mounting on the top-hat rail. The switches have been specially developed for industrial and IoT applications and support priority-controlled packet forwarding (Quality of Service) for maximum efficiency in data communication. The 24 VAC/VDC power supply with reverse polarity protection and inrush current limitation, the extended temperature range from -40°C to +70°C and a dielectric strength of 2.25 kVDC guarantee safe and reliable operation. The NITE-RS switches require the world's smallest installation space in control cabinets including the voltage terminal.
Connection: | 10 /100 |
---|---|
Fieldbus options: | PROFINET |
IP Level: | IP30 |
Port Number: | 8 Ports |
Temperature Range: | -40°C to 70°C |
Management: | unmanaged |
Features
- Flexible use with 24 VAC/VDC
- IP30 metal housing
- Minimum installation depth 22.5 mm
- Inrush current limiting
- Temperature range -40 to +70°C
- Stable DIN rail mounting
- Reverse polarity protected
- PROFINET suitable
Techncial details
General
Switch: IEEE802.3 Store and Forward; non-blocking wire speed
Auto-negotiation, auto-MDI-X, auto-polarity: Yes
Frame size: 2,048 bytes
MAC table size: 2,000 addresses
Quality of Service: Yes - 4 priority queues
Energy Efficient Ethernet: No
Flow Control: No
PROFINET suitable: Yes
Power supply / electronics
Rated voltage: Vin 24 VAC / 24 VDC
Perm. voltage range: 8 to 28 VAC / 9 to 36 VDC
Perm. voltage range 16 port: 12 to 28 VAC / 9 to 36 VDC
Connection type: 3-pole, pluggable screw connection (+ - FE)
Conductor cross-section: 0.08 to 2.5 (AWG 28 to 12)
Supply circuit: SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiting: Yes
Input fuse: Yes, switching capacity 50 A @ 125VAC / VDC
Reverse polarity protection: Yes
Bypass power failure: 10 ms DIN 50155 (5 & 8 ports)
PCB Conformal Coating: No
Protection Class: III
Insulation: 2.25 kVDC; Vin ↔ Ethernet Ports | Vin ↔ Housing
Mechanical properties
Housing material: Anodised aluminium, stainless steel
Mounting type: 35mm DIN top-hat rail
Protection class (operation): IP30
Ethernet interfaces
IEEE standards: 802.3 10BaseT, 802.3u 100BaseT(X)
Isolation: 2.25 kVDC; Ethernet Port ↔ Housing | Port ↔ Port
Connection type: RJ45
Port count | Speed: 5,8,16 ports | 10/100 Mbit/s
Cable length: 100 m (twisted pair, 0.14 mm² - 0.22 mm², Cat 5)
EMC and environmental specification
Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 85°C
Relative humidity (operating): 0%-95% (non-condensing)
Relative humidity (storage): 0%-95% (non-condensing)
Air pressure (operating): 2,000 m (795 hPa)
EMC immunity: DIN EN - 50121-3-2, 61000-6-2, 55024
EMC interference emission: DIN EN 50121-3-2, 61000-6-4, 55032
Mechanical stability: DIN EN 61373
Fire protection: DIN EN 45545 (5 & 8 ports)
Declaration of conformity and certifications
CE, DIN EN 60950-1
Status and diagnostic indicators
LED: Power | Link/Activity per port
Products
General
Switch: IEEE802.3 Store and Forward; non-blocking wire speed
Auto-negotiation, auto-MDI-X, auto-polarity: Yes
Frame size: 2,048 bytes
MAC table size: 2,000 addresses
Quality of Service: Yes - 4 priority queues
Energy Efficient Ethernet: No
Flow Control: No
PROFINET suitable: Yes
Portnumber (RJ45) | 5 | 8 | 16 |
MTBF (SN 29500, Mio. h) |
2.783 | 2.088 | tbd |
Frame Forwarding (Art.-Nr.) | xxxxx0 | xxxxx1 |
LLDP, PTCP Delay 01:80:C2:00:00:0E | Forwarding | Blocking |
RSTP BPDU 01:80:C2:00:00:00 | Forwarding | Forwarding |
Power supply / electronics
Rated voltage: Vin 24 VAC / 24 VDC
Perm. voltage range: 8 to 28 VAC / 9 to 36 VDC
Perm. voltage range 16 port: 12 to 28 VAC / 9 to 36 VDC
Connection type: 3-pole, pluggable screw connection (+ - FE)
Conductor cross-section: 0.08 to 2.5 (AWG 28 to 12)
Supply circuit: SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiting: Yes
Input fuse: Yes, switching capacity 50 A @ 125VAC / VDC
Reverse polarity protection: Yes
Bypass power failure: 10 ms DIN 50155 (5 & 8 ports)
PCB Conformal Coating: No
Protection Class: III
Insulation: 2.25 kVDC; Vin ↔ Ethernet Ports | Vin ↔ Housing
Portnumber (RJ45) | 5 | 8 | 16 |
Power consumption(W) Idle | Full load |
0,4 | 0,9 | 0,4 | 1,15 | 1,9 | 2,4 |
Input current (mA) Idle | Full load |
16 | 36 | 16 | 48 | 80 | 100 |
Inrush current (A) | 8 | 8 | 16 |
Mechanical properties
Housing material: Anodised aluminium, stainless steel
Mounting type: 35mm DIN top-hat rail
Protection class (operation): IP30
Portnumber (RJ45) | 5 | 8 | 16 |
Wide (mm) | 22,5 | 22,5 | 38 |
Height (mm) | 103 | 145 | 145 |
Depth (mm) | 77,4 | 77,4 | 77,4 |
Weight (g) | 225 | 295 | 420 |
Ethernet interfaces
IEEE standards: 802.3 10BaseT, 802.3u 100BaseT(X)
Isolation: 2.25 kVDC; Ethernet Port ↔ Housing | Port ↔ Port
Connection type: RJ45
Port count | Speed: 5,8,16 ports | 10/100 Mbit/s
Cable length: 100 m (twisted pair, 0.14 mm² - 0.22 mm², Cat 5)
EMC and environmental specification
Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 85°C
Relative humidity (operating): 0%-95% (non-condensing)
Relative humidity (storage): 0%-95% (non-condensing)
Air pressure (operating): 2,000 m (795 hPa)
EMC immunity: DIN EN - 50121-3-2, 61000-6-2, 55024
EMC interference emission: DIN EN 50121-3-2, 61000-6-4, 55032
Mechanical stability: DIN EN 61373
Fire protection: DIN EN 45545 (5 & 8 ports)
Declaration of conformity and certifications
CE, DIN EN 60950-1
Status and diagnostic indicators
LED: Power | Link/Activity per port
Products
Available models | ||
Article | Art.-Nr. | Specification |
NITE-RS5-1100 | 211400 | 5xRJ45, FE, 24 V |
NITE-RS8-1100 | 211600 | 8xRJ45, FE, 24 V |
NITE-RS16-1100 | 211800 | 16xRJ45, FE, 24 V |
NITE-RS5-1101 | 211401 | 5xRJ45, FE, 24 V, LLDP Blocking |
NITE-RS8-1101 | 211601 | 8xRJ45, FE, 24 V, LLDP Blocking |
NITE-RS16-1101 | 211801 | 16xRJ45, FE, 24 V, LLDP Blocking |
