Sierra Wireless - XR60 WI-FI 2x Ethernet
5G and Wi-Fi 6 Performance in an Ultra Compact and Rugged Router for Fixed and Mobile Mission-Critical Applications
Listpris:
16 662,09 kr*
Pris för återförsäljare - Inloggning
8 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
Tillverkarens artikelnummer:
1105159
Vårt artikelnummer:
660340
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "Sierra Wireless - XR60 WI-FI 2x Ethernet"
The ultra-compact and highly ruggedized AirLink XR60 delivers high performance 5G and Wi-Fi 6
connectivity to space-limited and harsh environments - from tight industrial enclosures to fast-moving
vehicles. With advanced networking capabilities, private network support and edge computing capabilities,
the XR60 future proofs your connectivity and accelerates your digital transformation.
A Fully Integrated Solution
The AirLink XR60 is fully integrated with AirLink Complete - a comprehensive service package that includes remote device and security management, expert technical support and extended hardware warranty. You can also opt for AirLink Premium - an advanced service package that includes all the benefits of AirLink Complete, enhanced with Advanced Mobility Reporting and Advance Replacement.
Ideal Applications
High-performance and reliable connectivity in fixed and mobile mission-critical applications:
Benefits
XR60 Services and Support
AIRLINK COMPLETE
Maximize your AirLink XR60 hardware investment with AirLink Complete - a comprehensive service package designed to empower you with the tools and support necessary to secure, optimize and effortlessly scale your XR60 deployments.
AirLink Complete includes*:
AIRLINK PREMIUM
Ideal for organizations managing mission-critical vehicle fleets, this service upgrade encompasses all the benefits of AirLink Complete*, enhanced with:
HYBRID CLOUD
This optional feature merges the benefits of cloud technology with on-premise security controls for the management of your AirLink XR and RX routers, offering ultimate security and control.
Hybrid Cloud is available to add to an active AirLink Complete or Premium subscription.
AIRLINK CONNECTION MANAGER (ACM) - MOBILE VPN
This purpose-built VPN solution securely extends your enterprise network to your AirLink router and its connected devices and applications.
Optimized for use in a mobile, multi-network environment it seamlessly maintains VPN tunnels as users roam between multiple carrier and Wi-Fi networks to prevent downtime and loss of communications.
Available in a FIPS 140-2 compliant offering.
In The Box XR60, DC Power Cable, Quick Start Guide, AirLink Complete Leaflet
A Fully Integrated Solution
The AirLink XR60 is fully integrated with AirLink Complete - a comprehensive service package that includes remote device and security management, expert technical support and extended hardware warranty. You can also opt for AirLink Premium - an advanced service package that includes all the benefits of AirLink Complete, enhanced with Advanced Mobility Reporting and Advance Replacement.
Ideal Applications
High-performance and reliable connectivity in fixed and mobile mission-critical applications:
- Critical Infrastructure
- Video Surveillance
- Smart Cities
- Manufacturing
- Public Safety Vehicles
- Fixed Wireless Access
- Fleet Vehicles
Benefits
- Designed for high performance with 5G, Wi-Fi 6, 5 Gbps Ethernet and USB-C technologies
- Ultra-compact design making it ideal for space-constrained industrial settings and vehicle applications
- Designed and thoroughly tested to thrive in the harshest conditions: shock and vibration resilience
(MIL-STD-810H grade),
extreme temperature and humidity operating range, intrinsic safety (C1D2) and power resilience - Advanced networking capabilities with flexible software-defined routing functions
- Multi-band support for extensive public and private networking coverage
- Edge intelligence with industry-standard container support
- Redundant USB-C power supply input for increased reliabilit
XR60 Services and Support
AIRLINK COMPLETE
Maximize your AirLink XR60 hardware investment with AirLink Complete - a comprehensive service package designed to empower you with the tools and support necessary to secure, optimize and effortlessly scale your XR60 deployments.
AirLink Complete includes*:
- AirLink Managerment Service (ALMS) for remote device and security management
- Extended hardware warranty up to 5 years maximum
- Expert technical support
AIRLINK PREMIUM
Ideal for organizations managing mission-critical vehicle fleets, this service upgrade encompasses all the benefits of AirLink Complete*, enhanced with:
- Advanced Mobility Reporting*:
Offers comprehensive coverage and fleet reporting to monitor your network and vehicles. - Advance Replacement*:
Provides same-day shipping for in-warranty router replacements, minimizing downtime, spare inventory and keeping your operations running smoothly.
HYBRID CLOUD
This optional feature merges the benefits of cloud technology with on-premise security controls for the management of your AirLink XR and RX routers, offering ultimate security and control.
Hybrid Cloud is available to add to an active AirLink Complete or Premium subscription.
AIRLINK CONNECTION MANAGER (ACM) - MOBILE VPN
This purpose-built VPN solution securely extends your enterprise network to your AirLink router and its connected devices and applications.
Optimized for use in a mobile, multi-network environment it seamlessly maintains VPN tunnels as users roam between multiple carrier and Wi-Fi networks to prevent downtime and loss of communications.
Available in a FIPS 140-2 compliant offering.
In The Box XR60, DC Power Cable, Quick Start Guide, AirLink Complete Leaflet
| Bandwidth: | 4G, 5G |
|---|---|
| Certifications: | ATEX, E-Mark, EN 50155 |
| Connection: | Digitale I/O, Ethernet Port, Serial Ports RS232, RS422/485, USB Port |
| Option: | SIM card slot |
| Options: | 5G, LTE, WiFi |
| Temperature Range: | Extended Temperature Range |
| Wireless Option: | GNSS / GPS / Glonass / Beidou, WiFi |
- 4x4 5G + LTE Cat-20
- 2x2 Wi-Fi 6 (optional)
- Dual-Band GNSS
- Single Serial / Single Ethernet (1 Gbps) or Dual Ethernet (1 Gbps + 5 Gbps)
- IP64 and MIL-STD-810H Rated
- Powered by AirLink® OS and AirLink® Complete
AirLink XR60 - Router Specifications
KEY FEATURESCellular Radios
5G
Wi-Fi
2x2 MIMO Wi-Fi 6 (Optional)

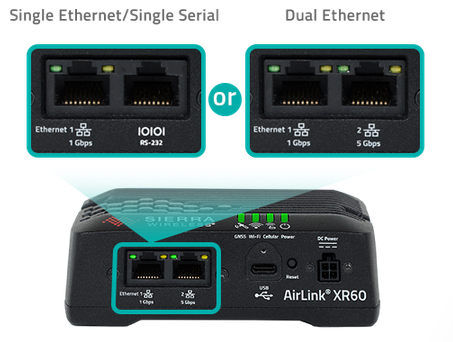

Ethernet 1x Ethernet RJ45 (1 Gbps) - Single Serial/Single Ethernet variant
2x Ethernet RJ45 (1 Gbps + 5 Gbps) - Dual Ethernet variant
Serial
Single RS-232 (RJ45) - Single Serial/Single Ethernet variant
GNSS
Dual-band 48 Channel GNSS
I/O
1 GPIO
USB
USB 3.2 Gen 1 Type-C® with Power Delivery and 5 Gbps LAN networking
IP Rating
Sealed Aluminum Housing (IP64 Rated)
Services
AirLink Complete (1 year included)
Operating System
AirLink OS
Management System
AirLink Management Service (ALMS)
GLOBAL
CELLULAR
Variant
Global
Technology
5G
Peak Downlink (Theoretical)
2800 Mbps
Peak Uplink (Theoretical)
300 Mbps
Category
5G
Region
Global
Radio
EM9291
MIMO
4x4

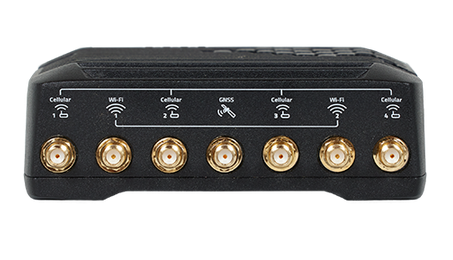

RF Connectors
SMA
SIM
Dual SIM (Nano-4FF)
WIRELESS CERTIFICATION
Regulatory
FCC, IC/ISED, PTCRB
Carrier
AT&T, FirstNet® 4G, T-Mobile, Verizon, CBRS. C-Band (Pending)
Planned: Rogers, Telus, Bell, Telstra
Public Safety
FirstNet® 4G (Pending)
Part Numbers
1105099 XR60 Dual Ethernet (1 Gbps + 5 Gbps)
1105159 XR60 Dual Ethernet (1 Gbps + 5 Gbps) with Wi-Fi
1105160 XR60 Single Serial, Single Ethernet (1 Gbps)
1105161 XR60 Single Serial, Single Ethernet (1 Gbps) with Wi-F
WI-FI
Wi-Fi Standard
Wi-Fi 6
Access Point
Dual (2.4 & 5 GHz)
Client (Depot/WAN)
Yes
Client & AP
Yes
Peak Throughput (Theoretical)
1200 Mbps
MIMO
Single 2x2
Security
WPA2/3 Personal
WPA2/3 Transitional
WPA2 Enterprise (Client only)
Clients
Up to 32 maximum
SSID
3
Output Power
21 dBm per chain
Frequency
2.4/5 GHz
RF Connectors
SMA (Reverse Polarity)
ENVIRONMENTAL
Operating Temperature
-40°C to +70°C / -40°F to +158°F
-30°C to +65°C / -22°F to +149°F (Wi-Fi variant)
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
95% RH @ 60°C
Military Specification
MIL-STD-810H (Shock, Vibration, Thermal Shock, Humidity)
IP Rating
IP64
INDUSTRY CERTIFICATIONS
Safety
IECEE Certification Bodies Scheme (CB Scheme)
Vehicle Usage
E-Mark (UN ECE Regulation 10.05), ISO7637-2,
SAE J1455 (Shock, Vibration, Electrical)
Environmental Directives
RoHS2, REACH, WEEE, Prop 65
Hazardous Environments
Class 1 Div 2 - Ambient temperatures of -30°C to +60°C IECEx & ATEX
Rail Usage
EN50155/EN45545 (Rolling Stock)
POWER
Input Voltage
7 to 36 VDC
Redundant power input via USB-C (45W)
Power Consumption
Idle Power: 3.5W (290 mA @ 12VDC) - Serial/Ethernet variant
Standby Mode Power: 55 mW (4.6 mA @ 12 VDC) Triggered on low voltage, I/O or periodic timer
Power Modes
7 to 36 VDC:
Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including
5VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown
Configurable features and ports to optimize power consumption
Can switch to redundant power input via USB-C (45W)
SECURITY
AAA
Wi-Fi 802.1x/Radius authentication
Firewall
Stateful firewall with port forwarding, DMZ
WLAN Encryption
WPA2/3 Personal
WPA2/3 Transitional
WPA2 Enterprise (Client only)
Firmware Update
Secure Firmware Update
NETWORK AND ROUTING
Throughput
800 Mbps Firewall TCP throughput
Features
Semtech Cognitive Wireless
IPv4 and IPv6 Routing
Network Address Translation (NAT)
Port Forwarding
DHCP Server
IP Passthrough
LAN Segmentation
IPv4 Passthrough and IPv6 Prefix Extension
WAN/LAN Connection Policy Management
Policy-Based Routing
Configurable MTU size
Static Routing
WAN Ethernet
QoS
Application/Traffic Priority Queuing
WAN Monitors
Connection Failure Recovery
LAN (ETHERNET/USB)
USB to Ethernet
VPN
Throughput
175 Mbps IPSec VPN TCP throughput
Features
Integrated with ACM VPN Server
IPsec protocol with IKEv1/IKEv2
FIPS 140-2 Level 1 compliant
Encryption
AES128/AES192/AES256
Hashing
SHA256/SHA384/SHA512
Key Exchange
DHGroup14/15/16/17/18/19/20/21
LAN to LAN and Host to LAN
Up to 10 concurrent tunnels per link
MOBIKE protocol
IP compression
Full/Split Tunnel
Dead Peer Detection (DPD)
ROUTER MANAGEMENT INTERFACES
ALMS
Local web user interface
REST API (Beta) licensed via ALMS
EDGE COMPUTING
Support for Edge Compute Docker Containerized
Applications (Beta) licensed via ALMS
RAM¹,²
1.2 GB
Storage (Flash)¹
1.7 GB
CPU
Quad Core Arm A53 64 bit
AIRLINK COMPLETE (1 Year Included With Router Purchase)
Support
24/7 technical support*
Hardware Warranty
1-year standard hardware warranty
Extended hardware warranty up to 5 years with current subscription**
Device Management
AirLink Management Service (ALMS)*
Software Updates
Unrestricted critical firmware updates
AIRLINK PREMIUM (Optional Upgrade)
Includes All Airlink Complete Features* and Adds:
Advanced Mobility Reporting
Coverage and fleet reporting***
Advance Replacement
Same-day shipping for in-warranty router replacements***
RELIABILITY
MTBF
1105099 XR60 Dual Ethernet: 264010 hours (30.13 years)
1105159 XR60 Dual Ethernet, Wi-Fi: 245227 hours (27.99 years)
1105160 XR60 Serial, Ethernet: 283666 hours (32.38 years)
1105161 XR60 Serial, Ethernet, Wi-Fi: 262094 hours (29.91 years)
- Ground Benign, 25°C
- MTBF calculations performed per Telcordia “Reliability
ACCESSORIES
In The Box
XR60,
DC Power Cable,
Quick Start Guide,
AirLink Complete Leaflet
Other Accessories (sold separately)
6001503 AC Adapter
6001502 Spare DC Power Cable
6001529 DIN Rail Bracket
6001410 RJ45 to Single DB9
6001409 RJ45 to Dual DB9
For Antenna options visit: web page

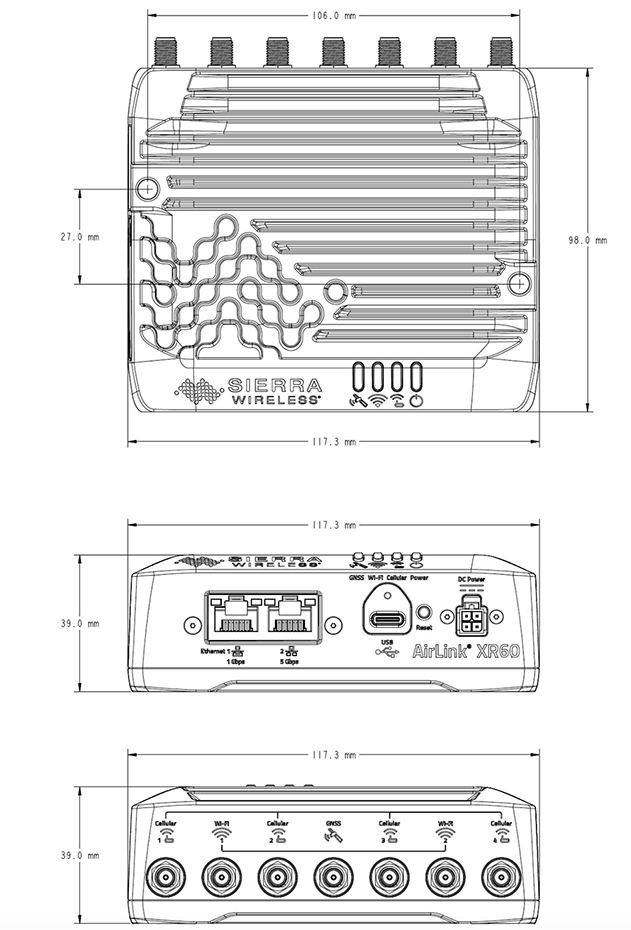

DIMENSIONS
AirLink XR60 Size:
118mm x 39mm x 98mm (108 including SMA connectors)
4.6 x 1.5 x 3.9 in (4.2 in including SMA connectors)
Same bolt pattern as RV
Weight:
522 g / 1.15 lb with Wi-Fi
1. Approximation available to containers (not device total)
2. Depends on other enabled features
*With current AirLink Complete subscription
**Full warranty terms are available at www.sierrawireless.com/end-user-warranty
***With current AirLink Premium subscription
