Perle SR-1000-SFP-XT
Gigabit Industrial Media Converter: 1000BASE-T (RJ-45) [100 m/328 ft] to 1000BASE-X SFP Slot (empty), -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source
Listpris:
5 180,20 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
05091630
Vårt artikelnummer:
221635
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "Perle SR-1000-SFP-XT"

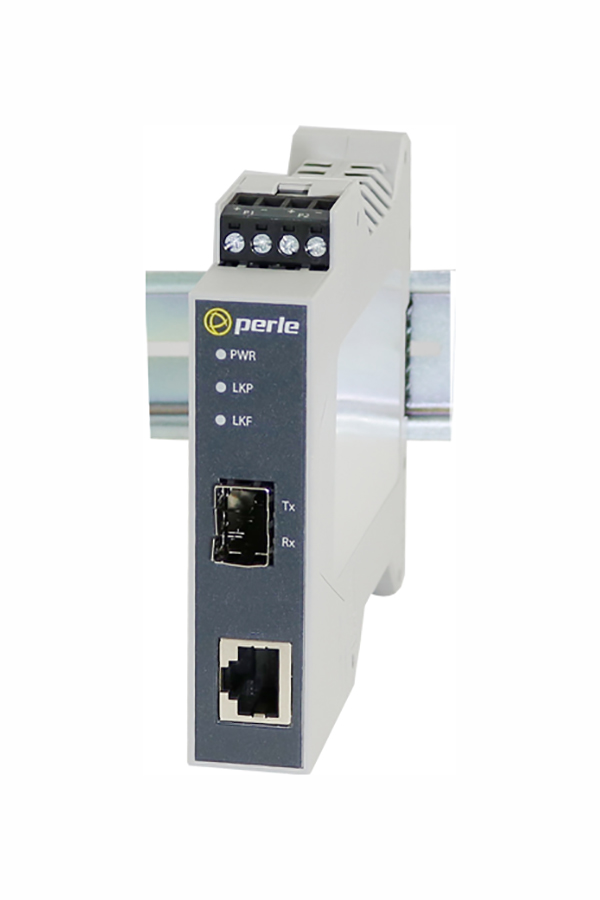

The Perle SR-1000-SFP-XT DIN Rail Media Converter transparently connects UTP copper to fiber in industrial grade operating temperatures -40°F to +167°F (-40°C to +75°C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. This Gigabit Media Converter is ideal for use with industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make the SR-1000-SFP-XT Gigabit Media Converter the smart choice for IT professionals.
Scope of delivery: Perle Systems - SR-1000-SFP-XT
- Extend the data transmission distance of IP-based devices by connecting their 1000Base-T Copper interface to fiber.
- Extend the distance of an existing industrial network by linking CAT5/6/7 cabling to multimode or single mode fiber.
- Protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make the SR-1000-SFP-XT Gigabit Media Converter the smart choice for IT professionals.
Scope of delivery: Perle Systems - SR-1000-SFP-XT
| Connection: | 1000 BaseX, 1000 SFP, Gigabit |
|---|---|
| Mounting: | DIN-Rail |
| Option: | Copper-to-FiberOptic |
| Temperature Range: | -40°C to 75°C |
Features
- 1000Base-T to 1000Base-X Fiber Media Converter
- Link copper to multimode or single mode fiber
- Empty slot for Cisco and other industry standard SFPs
- -40°C to +75°C (-40°F to +167°F) extended operating temperature
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Technical details
Power
Input Supply Voltage: Triple voltage 12 / 24 / 48 VDC (9.6 – 60 VDC) input supporting:
a) 2 x Terminal Block power input and
b) 1 x T-Bus power input
Current: 0.09 A (@ 24VDC)
Power Consumption: 2.16 watts (@ 24VDC)
Power Connector: Dual input Terminal Block and/or T-Bus
Indicators
Power / TST: This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink fast/slow when in Loopback test mode or hardware error.
Fiber link on / Receive activity (LKF): On: Fiber link present. Blinking slowly: Fiber link disabled because of copper link loss. Blinking quickly: Fiber link present and receiving data. Off: No fiber link present
Link Pass-Through (LKP): On: Copper link is present. Blinking slowly: Copper link disabled because of fiber link loss. Blinking quickly: Copper link present and receiving data. Off: No copper link present
10/100/1000 Copper Speed (SP): Green: 1000 Mbps, Yellow: 100 Mbps, Off: 10 Mbps
Copper Link Activity (LK): On: Copper link is present, Blinking quickly: Copper link receiving data

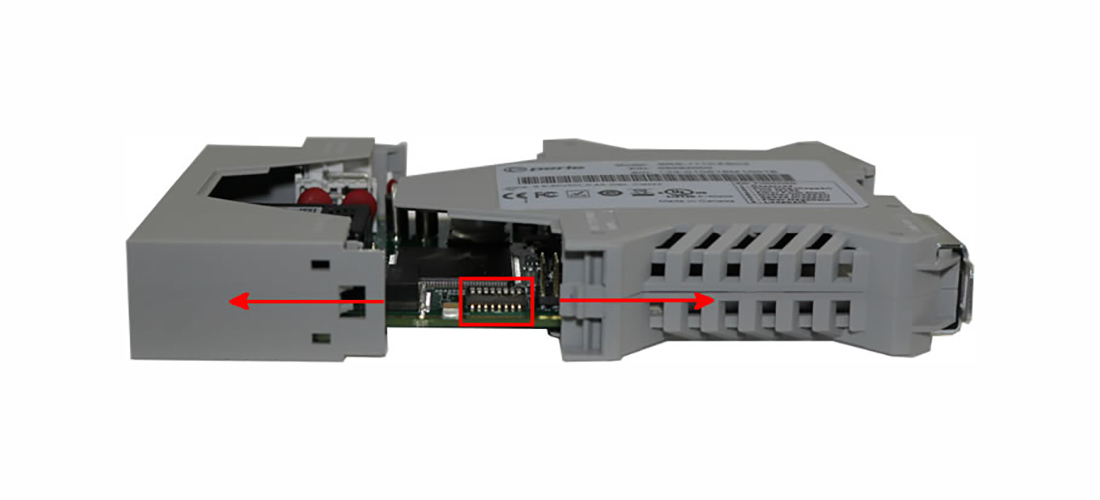

Switches - accessible through a side opening in the chassis
Auto-Negotiation
Auto (Deafault-Up): In this mode of operation the media converter will negotiate Ethernet parameters on both the copper and the fiber connection. This will ensure the most optimal connection parameters will be in effect. If connecting to another Perle Gigabit Media Converter, this parameter should be set to Auto.
Off: The fiber Negotiation should only be turned off, if the fiber link partner does not support fiber link negotiations.
Smart Link Pass-Through
Standard Mode (Default-Up): In this mode, if Fiber Negotiation is set to OFF, the links on the fiber and copper sides can be brought up and down independently of each other. A loss of link on either the fiber link or copper link can take place without affecting the other connection. However, if the Fiber Negotiation (switch 2) is set to Auto, then a loss of link on the copper side will result in a loss of link on the fiber side but not vice versa.
Smart Link Pass-Through(Down): In this mode, the link state on one connection is directly reflected through the media converter to the other connection. If link is lost on one of the connections, then the other link will be brought down by the media converter.
Pause
Enabled (Default-Up): In this mode, when Fiber Negotiation has been turned off, the media converter will use this setting for its Ethernet parameter negotiation on the copper connection. With this Pause switch in the Enabled position, the media converter will advertise support for Symmetrical and Asymmetrical Pause. Disabled: The media converter will not advertise support for the Pause feature.
Loopback
Disabled (Default-Up): The loopback feature is disabled. This is the normal position for regular operation. The switch must be set to this position for data to pass through the media converter.
Enabled: This is a test mode. All data received on the receive (RX) fiber connection is looped back to the transmit (TX) fiber connection. The state of the copper is not relevant and no data or link status is passed through to the copper side.
Fiber Fault Alert (FFA)
Enabled (Default-Up): In this mode, when Fiber negotiation is turned on, if the media converter detects a loss of fiber signal on the fiber receiver it will immediately disable its fiber transmitter signal. This notifies the fiber link partner that an error condition exists on the fiber connection. If the remote media converter is set up for FFA Enabled and the local media converter is set up with Smart Link Pass-Through, a loss of fiber link on either the transmit or receive line will be passed through to the local copper connection to notify the connected device. If the media converter has been set to Smart Link Pass-Through mode, the effect will be the same as FFA since the link loss on the fiber receiver will result in bringing down the copper link, which will in turn cause the transmit fiber link to be brought down.
Disabled: In this mode, the media converter will not monitor for fiber fault.
Duplex Mode
Auto (Default-Up): In this mode, when Fiber Negotiation has been turned off, the media converter will use this Duplex setting for its Ethernet parameter negotiation on the copper connection. In the Auto position, the media converter will advertise support for both Full and Half Duplex mode. The resultant negotiation will provide the most optimum connection.
Half: In this mode, the media converter will force the negotiation to Half Duplex mode
Cables and Connectors
1000Base-T: RJ45 connector, 4 pair CAT 5 (UTP or STP) or better cable
Small Form Factor Pluggable (SFP) slot: SFP slot models: Empty slot for 100Base-X SFP modules supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. Hot insertion and removable (hot swappable).
Magnetic Isolation: 1.5kv
Fiber Optic Cable: Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITu-T 625)
Filtering
Filtering: 1027 MAC Addresses
Frame Specifications
Buffer: 1000 Kbits frame buffer memory
Size: Maximum frame size of 10,240 bytes
Packet Transmission Characteristics
Bit Error Rate (BER): <10 -12
Environmental Specifications
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 5% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensing
Operating Altitude: Up to 3,048 meters (10,000 feet)
Heat Output (BTU/HR): 7.37
MTBF (Hours): 696,927 (Calculation model based on MIL-HDBK-217-FN2 @ 30 °C)
Chassis: Molded plastic DIN Rail case with an IP20 ingress protection rating
Mounting
Din Rail Kit: Native
Product Weight and Dimensions
Weight: 0.12 kg, 0.26 lbs
Dimensions: 114 x 100 x 22.5mm, 4.5 x 3.9 x 0.88 inches
