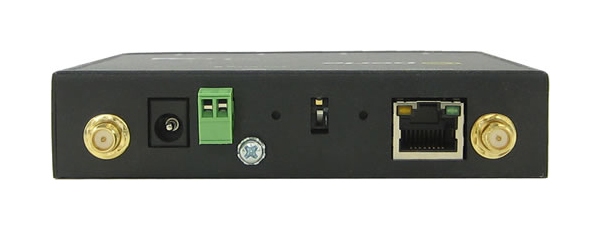

Perle - IOLAN SDG4 W
Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 4 x RJ45 connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD
Listpris:
12 980,00 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
04031682
Vårt artikelnummer:
221580
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "Perle - IOLAN SDG4 W"
For secure, High-Speed serial to Ethernet connectivity over wireless LAN applications, the IOLAN SDG W Device Server is the most advanced compact product available on the market today. Delivering high performance in a compact size, an IOLAN SDG W offers a support for a broad range of high performance Wireless LAN technology, extensive security, flexibility and next generation IPv6 technology making it ideal for applications that require remote serial device/console management, data capture or monitoring.
Secure Serial to Ethernet Connectivity
The IOLAN SDG Wireless Device Server enables administrators to securely access remote serial console ports on equipment such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Sensitive data such as credit card holder information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA Security's SecurID tokens.
By using encryption technologies, an IOLAN can protect sensitive and confidential data from a serial device such as a credit card reader before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.
Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network providing flexibility and the ability to match the right solution for a particular application.
IOLAN Device Server Plug-ins
By choosing a Perle IOLAN Device Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected. In the unlikely event that the Perle IOLAN Device Server does not enable this out of the box, Perle will make it work.
Perle IOLAN Device Servers utilize customer installable "Device Plug-ins" to successfully network devices where other solutions have failed. Request a free engineering consultation now.
Advanced IP Technology
With support for Next Generation IP (IPv6) the IOLAN Serial to Ethernet Device Server range provides organizations with investment protection to meet this rapidly growing standard.
Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.
It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.
Flexible and Reliable Serial to Ethernet Connections
An IOLAN SDG W Device Server is ideal for wirelessly connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle’s TruePort re-director provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle IOLAN's either in encrypted or clear text modes. You can also tunnel serial data between devices across an IP network.
Perle's Device Management software provides better centralized control of multiple units resulting in maximum uptime for your remote equipment.
All IOLAN SDG W models have added protection against electrostatic discharges and power surges with robust 15Kv ESD protection circuitry enabling organizations to utilize this solution in the field with confidence.
Scope of delivery: Perle Systems - IOLAN SDG4 W
Secure Serial to Ethernet Connectivity
The IOLAN SDG Wireless Device Server enables administrators to securely access remote serial console ports on equipment such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Sensitive data such as credit card holder information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA Security's SecurID tokens.
By using encryption technologies, an IOLAN can protect sensitive and confidential data from a serial device such as a credit card reader before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.
Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network providing flexibility and the ability to match the right solution for a particular application.
IOLAN Device Server Plug-ins
By choosing a Perle IOLAN Device Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected. In the unlikely event that the Perle IOLAN Device Server does not enable this out of the box, Perle will make it work.
Perle IOLAN Device Servers utilize customer installable "Device Plug-ins" to successfully network devices where other solutions have failed. Request a free engineering consultation now.
Advanced IP Technology
With support for Next Generation IP (IPv6) the IOLAN Serial to Ethernet Device Server range provides organizations with investment protection to meet this rapidly growing standard.
Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.
It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.
Flexible and Reliable Serial to Ethernet Connections
An IOLAN SDG W Device Server is ideal for wirelessly connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle’s TruePort re-director provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle IOLAN's either in encrypted or clear text modes. You can also tunnel serial data between devices across an IP network.
Perle's Device Management software provides better centralized control of multiple units resulting in maximum uptime for your remote equipment.
All IOLAN SDG W models have added protection against electrostatic discharges and power surges with robust 15Kv ESD protection circuitry enabling organizations to utilize this solution in the field with confidence.
Scope of delivery: Perle Systems - IOLAN SDG4 W
| Connection: | Wireless |
|---|---|
| Protocol: | RS 232 / 422 / 485 |
| Serial Ports: | 4 Ports |
Features
- High performance WLAN (Wi-Fi ®) : Dual band radio supporting IEEE 802.11 a,b,g,n
- Wireless speeds up to 150Mbps
- 1, 2 or 4 software selectable RS232/422/485 serial port interfaces
- High-Speed Gigabit Ethernet (10/100/1000 Base-T)
- Advanced security features for data encryption, user authentication and event management
- Wireless Infrastructure and peer to peer connectivity modes
Technical details
Processor
600Mhz ARM Processor
Memory
RAM MB: 512M
Flash MB: 4G
Interface Ports
Number of Serial Ports: 4 (RJ45)
Serial Port Interface: Software selectable EIA232/422/485
Sun / Solaris: Sun / Oracle ‘Solaris' Safe - no "break signal" sent during; power cycle causing costly server re-boots or downtime
Serial Port Speeds: 300bps to 230Kbps with customizable baud rate support
Data Bits: Configurable for 5,6,7 or 8-bit protocol support; Use TruePort to transparently pass 9-bit serial data
Parity: Odd, Even, Mark, Space, None
Flow Control: Hardware, Software, Both, None
Serial Port Protection: 15Kv Electrostatic Discharge Protection (ESD)
Local Console Port: RS232 on Serial Port
Ethernet Network: Autosensing 1000-base-T / 100-base TX / 10-base T Auto-MDIX; Software selectable Ethernet speed 1000/100/10; Software selectable Half/Full/Auto duplex
Ethernet Isolation: 1.5Kv Magnetic Isolation
Integrated Wireless Access
Wireless LAN standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11i
Wireless Topology: Infrastructure (AP) and Peer to Peer- (SoftAP) modes
Wireless Radio: Dual-Band Radio ; 2.4GHz and 5GHz 20, 40Mhz SISO 2.4-GHz
Maximal Ratio Combining (MRC), Rx Diversity: 2.4 GHz MRC support for up to 1.4 Extended Range and 5 GHz Diversity Capable
Wireless Data Rates: 802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (40Mhz channel @ 400ns Short GI); 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps
Operational Frequency Range (MHz): 2412 to 2484 MHz, 4910 to 5825 MHz
Modulation: DSSS, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Wireless Receiver Sensitivity in dBm (2.4Ghz SISO)
802.11b/g (20 MHz channel)
1 Mbps: -95.0
2 Mbps: -92.0
5.5 Mbps: -89.2
6 Mbps: -91.0
9 Mbps: -89.0
11 Mbps: -86.3
12 Mbps: -88.0
18 Mbps: -85.5
24 Mbps: -82.5
36 Mbps: -79.0
48 Mbps: -74.0
54 Mbps: -72.7
802.11n (20 MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -89.3
14.4 Mbps (MCS1): -86.5
21.7 Mbps (MCS2): -84.5
28.9 Mbps (MCS3): -81.5
43.3 Mbps (MCS4): -78.0
57.8 Mbps (MCS5): -73.5
65.0 Mbps (MCS6): - 71.5
72.2 Mbps (MCS7): -70.0
802.11n (40 MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -89.3
30.0 Mbps (MCS1): -86.5
45.0 Mbps (MCS2): -84.5
60.0 Mbps (MCS3): -81.5
90.0 Mbps (MCS4): -78.0
120.0 Mbps (MCS5): -73.5
135.0 Mbps (MCS6): - 71.5
150.0 Mbps (MCS7): -70.0
Wireless Transmit Power in dBm (2.4Ghz SISO)
(20 MHz channel)
1 Mbps: 16.0
2 Mbps: 16.0
5.5 Mbps: 16.0
6 Mbps: 16.5
9 Mbps: 16.5
11 Mbps: 16.0
12 Mbps: 16.5
18 Mbps: 16.5
24 Mbps: 16.5
36 Mbps: 15.2
48 Mbps: 14.3
54 Mbps: 13.5
MCS0 : 16.0
MCS1 : 16.0
MCS2 : 16.0
MCS3 : 16.0
MCS4 : 15.2
MCS5 : 14.3
MCS6 : 13.5
MCS7 : 12.6
(40 MHz channel)
MCS0 : 14.0
MCS7 : 11.8
Wireless Receiver Sensitivity in dBm (5Ghz SISO)
802.11a
6 Mbps: -92.5
9 Mbps: -90.5
12 Mbps: -90.0
18 Mbps: -87.5
24 Mbps: -84.5
36 Mbps: -81.0
48 Mbps: -76.5
54 Mbps: -74.6
802.11n (20MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -91.4
14.4 Mbps (MCS1): -88.0
21.7 Mbps (MCS2): -86.0
28.9 Mbps (MCS3): -83.0
43.3 Mbps (MCS4): -79.8
57.8 Mbps (MCS5): -75.5
65.0 Mbps (MCS6): - 74.0
72.2 Mbps (MCS7): -72.4
802.11n (40MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -88.5
150.0 Mbps (MCS7): -69.3
Wireless Transmit Power in dBm (5Ghz SISO)
802.11a
6 Mbps: 18.0
9 Mbps: 18.0
12 Mbps: 18.0
18 Mbps: 18.0
24 Mbps: 17.4
36 Mbps: 16.5
48 Mbps: 15.8
54 Mbps: 14.5
802.11n (HT20) @ 400ns GI
7.2 Mbps (MCS0): 18.0
14.4 Mbps (MCS1): 18.0
21.7 Mbps (MCS2): 18.0
28.9 Mbps (MCS3): 18.0
43.3 Mbps (MCS4): 16.5
57.8 Mbps (MCS5): 15.8
65.0 Mbps (MCS6): 14.5
72.2 Mbps (MCS7): 12.0
802.11n (HT40) @ 400ns GI
15.0 Mbps (MCS0): 16.5
150.0 Mbps (MCS7): 12.0
Short Guard Interval (SGI): 800ns and 400ns (Short Guard Interval)
Wireless Antenna: Dual-band 2.4/5.0 GHz, Omni-directional, Dipole antenna, 50 Ohm, 2 dBi, black with RP-SMA / RSMA finger tighten connector. Same antenna can be used as Main and/or Diversity for increased wireless performance, signal reliability, and extended range.
Wireless Security: WEP, WPA-PSK, WPA2-PSK & Enterprise (EAP, PEAP, LEAP), 802.11i (includes hardware-accelerated Advanced Encryption Standard [AES]), 802.1x supplicant
Fast Wireless Roaming: Ideal for mobile applications , the IOLAN can transparently roam between APs (Access Points) that share the same ESS (Extended Service Set)
WiFi Protected Setup (WPS V2): A plug and play set up feature where the IOLAN can easily connect to a WPS capable central access point or a SoftAP compliant device supporting WPS
Power
Power Supply: 120 V / 230V AC to 12vDC Wall Power Adaptor included. (Barrel connector, commercial-grade temperature – 0 to 60C)
2 x Power Supply Selection: Use external power 9-30v DC on standard 5.5mm x 9.5mm x 2.1mm barrel socket or 2-pin terminal block
Nominal Input Voltage: 12/24v DC
Input Voltage Range: 9-30v DC
Typical Power Consumption @ 24v DC (Watts): 1 port: 3.96; 2 port: 4.23; 4 port: 4.44
Indicators
LEDs: Power/Ready, Network Link, Network Link activity, Serial: Transmit and Receive data per port, Wireless Link, Wireless Strength
Environmental Specifications
Heat Output (BTU/HR): 1 port: 13.5, 2 port: 14.4, 4 port: 15.1
MTBF (Hours): 1 port : 222,675; 2 port : 206,430; 4 port: 170,530
Operating Temperature: -40° C to 75° C (-40 F to 167° F)
Storage Temperature: -40 C to 85 C (-40 F to 185 F)
Humidity: 5 to 95% (non-condensing) for both storage and operation.
Case: SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating: IP40
Mounting: Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight: 0.4 kg (0.88 lbs)
Dimensions: 110 x 111 x 24 mm (4.3 x 4.4 x 0.9 in)
Processor
600Mhz ARM Processor
Memory
RAM MB: 512M
Flash MB: 4G
Interface Ports
Number of Serial Ports: 4 (RJ45)
Serial Port Interface: Software selectable EIA232/422/485
Sun / Solaris: Sun / Oracle ‘Solaris' Safe - no "break signal" sent during; power cycle causing costly server re-boots or downtime
Serial Port Speeds: 300bps to 230Kbps with customizable baud rate support
Data Bits: Configurable for 5,6,7 or 8-bit protocol support; Use TruePort to transparently pass 9-bit serial data
Parity: Odd, Even, Mark, Space, None
Flow Control: Hardware, Software, Both, None
Serial Port Protection: 15Kv Electrostatic Discharge Protection (ESD)
Local Console Port: RS232 on Serial Port
Ethernet Network: Autosensing 1000-base-T / 100-base TX / 10-base T Auto-MDIX; Software selectable Ethernet speed 1000/100/10; Software selectable Half/Full/Auto duplex
Ethernet Isolation: 1.5Kv Magnetic Isolation
Integrated Wireless Access
Wireless LAN standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11i
Wireless Topology: Infrastructure (AP) and Peer to Peer- (SoftAP) modes
Wireless Radio: Dual-Band Radio ; 2.4GHz and 5GHz 20, 40Mhz SISO 2.4-GHz
Maximal Ratio Combining (MRC), Rx Diversity: 2.4 GHz MRC support for up to 1.4 Extended Range and 5 GHz Diversity Capable
Wireless Data Rates: 802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (40Mhz channel @ 400ns Short GI); 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps
Operational Frequency Range (MHz): 2412 to 2484 MHz, 4910 to 5825 MHz
Modulation: DSSS, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Wireless Receiver Sensitivity in dBm (2.4Ghz SISO)
802.11b/g (20 MHz channel)
1 Mbps: -95.0
2 Mbps: -92.0
5.5 Mbps: -89.2
6 Mbps: -91.0
9 Mbps: -89.0
11 Mbps: -86.3
12 Mbps: -88.0
18 Mbps: -85.5
24 Mbps: -82.5
36 Mbps: -79.0
48 Mbps: -74.0
54 Mbps: -72.7
802.11n (20 MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -89.3
14.4 Mbps (MCS1): -86.5
21.7 Mbps (MCS2): -84.5
28.9 Mbps (MCS3): -81.5
43.3 Mbps (MCS4): -78.0
57.8 Mbps (MCS5): -73.5
65.0 Mbps (MCS6): - 71.5
72.2 Mbps (MCS7): -70.0
802.11n (40 MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -89.3
30.0 Mbps (MCS1): -86.5
45.0 Mbps (MCS2): -84.5
60.0 Mbps (MCS3): -81.5
90.0 Mbps (MCS4): -78.0
120.0 Mbps (MCS5): -73.5
135.0 Mbps (MCS6): - 71.5
150.0 Mbps (MCS7): -70.0
Wireless Transmit Power in dBm (2.4Ghz SISO)
(20 MHz channel)
1 Mbps: 16.0
2 Mbps: 16.0
5.5 Mbps: 16.0
6 Mbps: 16.5
9 Mbps: 16.5
11 Mbps: 16.0
12 Mbps: 16.5
18 Mbps: 16.5
24 Mbps: 16.5
36 Mbps: 15.2
48 Mbps: 14.3
54 Mbps: 13.5
MCS0 : 16.0
MCS1 : 16.0
MCS2 : 16.0
MCS3 : 16.0
MCS4 : 15.2
MCS5 : 14.3
MCS6 : 13.5
MCS7 : 12.6
(40 MHz channel)
MCS0 : 14.0
MCS7 : 11.8
Wireless Receiver Sensitivity in dBm (5Ghz SISO)
802.11a
6 Mbps: -92.5
9 Mbps: -90.5
12 Mbps: -90.0
18 Mbps: -87.5
24 Mbps: -84.5
36 Mbps: -81.0
48 Mbps: -76.5
54 Mbps: -74.6
802.11n (20MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -91.4
14.4 Mbps (MCS1): -88.0
21.7 Mbps (MCS2): -86.0
28.9 Mbps (MCS3): -83.0
43.3 Mbps (MCS4): -79.8
57.8 Mbps (MCS5): -75.5
65.0 Mbps (MCS6): - 74.0
72.2 Mbps (MCS7): -72.4
802.11n (40MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -88.5
150.0 Mbps (MCS7): -69.3
Wireless Transmit Power in dBm (5Ghz SISO)
802.11a
6 Mbps: 18.0
9 Mbps: 18.0
12 Mbps: 18.0
18 Mbps: 18.0
24 Mbps: 17.4
36 Mbps: 16.5
48 Mbps: 15.8
54 Mbps: 14.5
802.11n (HT20) @ 400ns GI
7.2 Mbps (MCS0): 18.0
14.4 Mbps (MCS1): 18.0
21.7 Mbps (MCS2): 18.0
28.9 Mbps (MCS3): 18.0
43.3 Mbps (MCS4): 16.5
57.8 Mbps (MCS5): 15.8
65.0 Mbps (MCS6): 14.5
72.2 Mbps (MCS7): 12.0
802.11n (HT40) @ 400ns GI
15.0 Mbps (MCS0): 16.5
150.0 Mbps (MCS7): 12.0
Short Guard Interval (SGI): 800ns and 400ns (Short Guard Interval)
Wireless Antenna: Dual-band 2.4/5.0 GHz, Omni-directional, Dipole antenna, 50 Ohm, 2 dBi, black with RP-SMA / RSMA finger tighten connector. Same antenna can be used as Main and/or Diversity for increased wireless performance, signal reliability, and extended range.
Wireless Security: WEP, WPA-PSK, WPA2-PSK & Enterprise (EAP, PEAP, LEAP), 802.11i (includes hardware-accelerated Advanced Encryption Standard [AES]), 802.1x supplicant
Fast Wireless Roaming: Ideal for mobile applications , the IOLAN can transparently roam between APs (Access Points) that share the same ESS (Extended Service Set)
WiFi Protected Setup (WPS V2): A plug and play set up feature where the IOLAN can easily connect to a WPS capable central access point or a SoftAP compliant device supporting WPS
Power
Power Supply: 120 V / 230V AC to 12vDC Wall Power Adaptor included. (Barrel connector, commercial-grade temperature – 0 to 60C)
2 x Power Supply Selection: Use external power 9-30v DC on standard 5.5mm x 9.5mm x 2.1mm barrel socket or 2-pin terminal block
Nominal Input Voltage: 12/24v DC
Input Voltage Range: 9-30v DC
Typical Power Consumption @ 24v DC (Watts): 1 port: 3.96; 2 port: 4.23; 4 port: 4.44
Indicators
LEDs: Power/Ready, Network Link, Network Link activity, Serial: Transmit and Receive data per port, Wireless Link, Wireless Strength
Environmental Specifications
Heat Output (BTU/HR): 1 port: 13.5, 2 port: 14.4, 4 port: 15.1
MTBF (Hours): 1 port : 222,675; 2 port : 206,430; 4 port: 170,530
Operating Temperature: -40° C to 75° C (-40 F to 167° F)
Storage Temperature: -40 C to 85 C (-40 F to 185 F)
Humidity: 5 to 95% (non-condensing) for both storage and operation.
Case: SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating: IP40
Mounting: Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight: 0.4 kg (0.88 lbs)
Dimensions: 110 x 111 x 24 mm (4.3 x 4.4 x 0.9 in)
