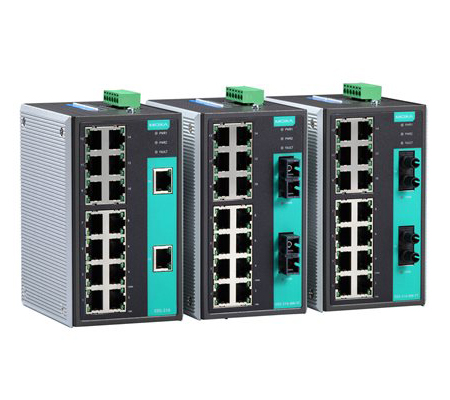

MOXA - EDS-316
Unmanaged Ethernet switch with 16 10/100BaseT(X) ports, relay output warning, 0 to 60°C operating temperature
Listpris:
6 693,42 kr*
Pris för återförsäljare - Inloggning
Leveranstid: Varor är beställda, tillgängliga igen inom kort
Tillverkarens artikelnummer:
EDS-316
Vårt artikelnummer:
10721
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "MOXA - EDS-316"
The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.
Scope of delivery: MOXA - EDS-316
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.
Scope of delivery: MOXA - EDS-316
| Certifications: | ATEX, Marine |
|---|---|
| Connection: | 10 /100, 100 FX |
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 8+ Ports |
| Power Supply: | 12V DC, 24V DC, 48V DC |
| Temperature Range: | -10°C to 60°C |
| Management: | Layer 2 unmanaged |
Features
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)
Technical details
Input/Output Interface
Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 16, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Optical Fiber
DIP Switch Configuration
Ethernet Interface: Port break alarm
Switch Properties
Packet Buffer Size: 1.25 Mbits
MAC Table Size: 4 K
Processing Type: Store and Forward
Power Parameters
Input Current: 0.34 A @ 24 VDC
Connection: 1 removable 6-contact terminal block(s)
Operating Voltage: 9.6 to 60 VDC
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Reverse Polarity Protection: Supported
Overload Current Protection: Supported
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight: 1140 g (2.52 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Input/Output Interface
Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 16, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Optical Fiber
DIP Switch Configuration
Ethernet Interface: Port break alarm
Switch Properties
Packet Buffer Size: 1.25 Mbits
MAC Table Size: 4 K
Processing Type: Store and Forward
Power Parameters
Input Current: 0.34 A @ 24 VDC
Connection: 1 removable 6-contact terminal block(s)
Operating Voltage: 9.6 to 60 VDC
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Reverse Polarity Protection: Supported
Overload Current Protection: Supported
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight: 1140 g (2.52 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
