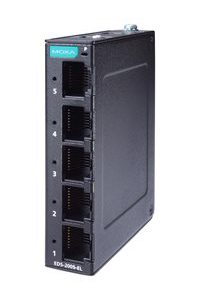

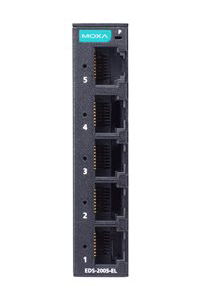

MOXA - EDS-2005-EL - Fast-Ethernet Switch
Unmanaged Fast Ethernet switch with 5x 10/100BaseT(X) ports (-10 to 60°C operating temperature)
Listpris:
1 131,45 kr*
Pris för återförsäljare - Inloggning
218 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
Tillverkarens artikelnummer:
EDS-2005-EL
Vårt artikelnummer:
14301
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "MOXA - EDS-2005-EL - Fast-Ethernet Switch"
The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Scope of delivery: MOXA - EDS-2005-EL
The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Scope of delivery: MOXA - EDS-2005-EL
| Connection: | 10 / 100 / 1000-TX (RJ45) |
|---|---|
| IP Level: | IP40 |
| Port Number: | 5 Ports |
| Temperature Range: | -10°C to 60°C |
Features
- 10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated metal housing
- -40 to 75°C wide operating temperature range (-T models)
Technical details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 5, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
Standards: IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
Connection: 1 removable 2-contact terminal block(s)
Input Current: 0.045 A @ 24 VDC
Input Voltage: 12/24/48 VDC
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Dimensions: 18 x 81 x 65 mm (0.7 x 3.19 x 2.56 in)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Weight: 105 g (0.23 lb)
Housing: Metal
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: EDS-2005-EL: -10 to 60°C (14 to 140°F), EDS-2005-EL-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 5, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
Standards: IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
Connection: 1 removable 2-contact terminal block(s)
Input Current: 0.045 A @ 24 VDC
Input Voltage: 12/24/48 VDC
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Dimensions: 18 x 81 x 65 mm (0.7 x 3.19 x 2.56 in)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Weight: 105 g (0.23 lb)
Housing: Metal
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: EDS-2005-EL: -10 to 60°C (14 to 140°F), EDS-2005-EL-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
