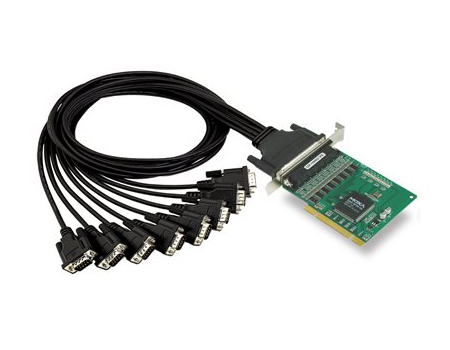

MOXA - CP-168U
RS-232 Universal PCI Serial Board with 8 ports
Listpris:
2 179,53 kr*
Pris för återförsäljare - Inloggning
Leveranstid: Varor är beställda, tillgängliga igen inom kort
Tillverkarens artikelnummer:
CP-168U
Vårt artikelnummer:
10171
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "MOXA - CP-168U"
The CP-168U is an intelligent universal 8-port PCI card for POS and ATM applications. It is a top choice for industrial automation engineers and system integrators and supports many different operating systems, including Windows, Linux and even UNIX. In addition, each of the board's eight RS-232 serial ports supports a fast baud rate of 921.6 kbit/s. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals. It works with both 3.3 V and 5 V PCI buses and allows the board to be installed in virtually any available PC server.
scope of delivery: MOXA - CP-168U
scope of delivery: MOXA - CP-168U
Isolation: | without isolation |
---|---|
Processor: | without processor |
Protocol: | RS 232 |
Serial Ports: | 8 Ports |
Features
- Over 700 kbit/s data throughput for highest performance
- Maximum baud rate of 921.6 kbit/s for fast data transmission
- 128-byte FIFO and on-chip H / W, S / W flow control
- Compatible with 3.3 / 5 V PCI and PCI-X
- Drivers for a wide range of operating systems, including Windows, Linux and UNIX
- Wide temperature model for -40 to 85 ° C environments.
Technical details
Serial interface
Serial interface
- Connector: DB62 female
- Number of ports: 8
- Max. Number of boards per PC: 8
- Bus: 32-bit universal PCI
- Serial standards: RS-232
- Comm. Controller: MU860 (16C550C compatible)
- FIFO: 128 bytes
- Baud rate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Sequence control: None, RTS / CTS, XON / XOFF
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Windows drivers: DOS, Windows 95/98 / ME / NT / 2000, Windows XP / 2003 / Vista / 2008/7/8 / 8.1 / 10 (x86 / x64), Windows 2008 R2 / 2012/2012 R2 (x64), Windows Embedded CE 5.0 / 6.0, Windows XP Embedded
- Linux drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x.
- UNIX drivers: Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
- Input current: 180 mA at 5 VDC
- LED indicators: Built-in Tx and Rx LEDs for each port
- Dimensions: 82 x 120 mm
- Operating temperature: 0 to 55 ° C (32 to 131 ° F)
- Storage temperature: -40 to 85 ° C (-40 to 185 ° F)
- Relative humidity: 5 to 95% (non-condensing)
