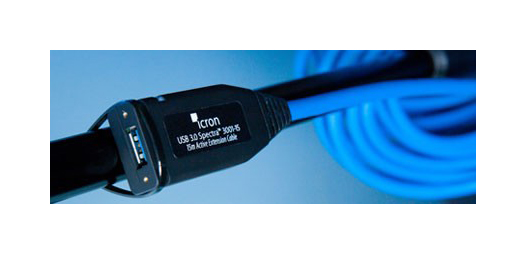

Icron USB 3.0 Spectra 3001-15 - 00-00351
1 port, extends USB 3.0 connections up to 15 metres (data flow of 5Gbps)
Listpris:
3 573,00 kr*
Pris för återförsäljare - Inloggning
7 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
Tillverkarens artikelnummer:
00-00351
Vårt artikelnummer:
760033
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "Icron USB 3.0 Spectra 3001-15 - 00-00351"
The distance limit of USB 3.0 is about 3 metres. If up to 15 metres is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged, bus-powered active cable supports USB 3.0 throughputs of 5 Gbps and delivers 5 V/900 mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a lockable USB connector compliant with AIA USB3 Vision. The cable is guaranteed for 2 years from the date of purchase. Backwards compatibility to USB 2.0/1.1 is not supported by this particular extender.
Scope of delivery: 15 metre USB 3.0 Spectra 3001-15 Active Cable, cable tie, quick start guide.
Scope of delivery: 15 metre USB 3.0 Spectra 3001-15 Active Cable, cable tie, quick start guide.
| Port Number: | 1 Port |
|---|
Features
- USB 3.0 extension for 15m
- Supports USB 3.0 throughputs up to 5Gbps
- Bus power from host PC, no external power supply required
- USB 3.0 device connector provides 5V, 900mA power
- Second USB power port for when additional power is needed
- Lockable USB connector
- Slots on device port for convenient attachment of cable ties
- Robust cabling
- Status LED on unit connector with current, enumeration and overcurrent indicators
- Works with AIA USB3 Vision compatible devices
- 2 year warranty
- ExtremeUSB suite features:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Technical details
Range
Speed
Physical
Power
Environmental conditions
Certifications
Support
Range
- Active copper cable: 15m (49.21 ft.)
Speed
- USB 3.0: Up to 5Gbps (not backwards compatible with USB 2.0/1.1)
Physical
- USB connections on the device side: 1 x USB 3.0 type A locking socket
- USB connections on the host side: 1 x USB 3.0 type A host connector
- 1 x USB type A power connector (required for devices consuming more than 2.5 W)
- Cable diameter: 6.9mm (0.27")
- Jacket material: PVC
- Bending radius: 28mm (1.10")
- Mounting slots on the unit side: slots for cable ties
Power
- Power source: Bus power supply
- Input power: Up to 1.4A
- Available current: 5V, 900mA
Environmental conditions
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10 % to 90 % relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental compatibility: RoHS2 (CE)
- Flammability: VW-1 (UL 1581)
- Machine vision: Works with AIA USB3 Vision compatible devices
Support
- Warranty: 2 years
