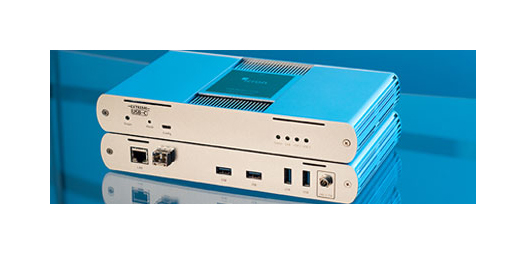

Icron USB 3-2-1 Raven 3124 - 00-00438
4 ports, extends USB 3-2-1 simultaneously via Gals fibre (multimode) up to 200 metres
Listpris:
17 388,60 kr*
Pris för återförsäljare - Inloggning
88 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
Tillverkarens artikelnummer:
00-00438
Vårt artikelnummer:
760058
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "Icron USB 3-2-1 Raven 3124 - 00-00438"
The Icron USB 3-2-1 Raven 3124 allows users to extend all USB 3.1 Gen 1 (5 Gbps) device types and is backward compatible with USB 2.0 and 1.1 via a point-to-point connection up to 200m over a single duplex multimode fibre cable.
This 4-port USB 3.1 extender supports data rates of up to 5Gbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, Linux and Chrome OS.
In addition, this Extreme USB-C based multimode fibre optic USB 3.1 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: USB 3.1 conference cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters, audio devices and any other USB 3, 2 and 1 device.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB 3.1 Gen 1 cable, LEX 24V DC 1A power adapter, REX 24V DC 2.71A power adapter, 2 x power cables, quick start guide.
This 4-port USB 3.1 extender supports data rates of up to 5Gbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, Linux and Chrome OS.
In addition, this Extreme USB-C based multimode fibre optic USB 3.1 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: USB 3.1 conference cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters, audio devices and any other USB 3, 2 and 1 device.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB 3.1 Gen 1 cable, LEX 24V DC 1A power adapter, REX 24V DC 2.71A power adapter, 2 x power cables, quick start guide.
Port Number: | 4 Ports |
---|
Features
- USB 3.1 Gen 1 data rate up to 5 Gbit/s
- Built-in four-port USB 3.1 hub that supports all USB 3.1, 2.0 and 1.1 devices simultaneously at full bandwidth
- Up to 1.2 A (6 W) per USB port
- 100 Mbps Ethernet channel; LAN pass-through
- Single-cable, OM3 multimode fibre up to 200 m
- Point-to-point connection
- FCC and CE compliance (Class B)
- Electrical insulation
- 2-year warranty
- ExtremeUSB-C suite of features:
- Transparent USB extension that supports USB 3, 2 and 1
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, Linux and Chrome OS
Technical details
Range
Speed
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Direct connection up to 200 m via OM3 or better multimode optical fibre
Speed
- USB 3.1: up to 5Gbps
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
LEX (Local Extender)
- 1x USB 3 Gen 1 type B socket
- 1x RJ45 Ethernet 100 Mbps connector
- 1x Duplex LC
- 24V 1A DC locking socket
- Housing material: silver anodised aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
- Weight: 920g (2.03 lbs.)
- Mounting: 4 holes for surface mounting or optional mounting kit available
REX (Remote Extender)
- 4x USB 3.1 Gen 1 type A sockets
- 1x RJ45 Ethernet 100 Mbps connector
- 1x Duplex LC
- 24V 2.71A DC locking socket
- Available current: up to 1.2A (6W) per USB port
- Housing material: silver anodised aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
- Weight: 990g (2.18 lbs.)
- Mounting: 4 holes for surface mounting or optional mounting kit available
Environmental conditions
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10% to 90% relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2, REACH, conflict minerals
Support
- Warranty: 2 years
