Produktinformation "Icron USB 2.0 Ranger 2301GE-LAN - 00-00397"

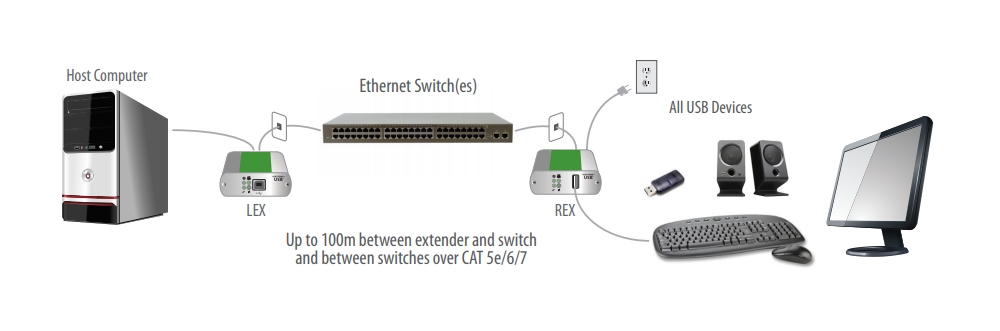

The USB 2.0 Ranger 2301GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or a single CAT 5e/6/7 cable up to 100m in a point-to-point fashion. Extending via LAN saves installation time and provides visibility to the IT department.
This 1-port USB 2.0 LAN extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based 1-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), 2 metre USB cable, quick start guide, power adapter with cable.
This 1-port USB 2.0 LAN extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based 1-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), 2 metre USB cable, quick start guide, power adapter with cable.
Port Number: | 1 Port |
---|
Features
- Extends all USB 2.0/1.1 devices up to 480 Mbps
- Extender via GigE LAN or up to 100m point-to-point via a single CAT 5e/6/7 cable
- Easy installation: Pre-paired for network configuration
- Delivers up to 1 Amp to the USB port
- Mass storage acceleration for bulk transfers from USB 2.0 devices
- Metal enclosure with FCC/CE Class B certification
- Two-year warranty
- ExtremeUSB suite features:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, and Linux
Technical details
Range
Speed
Network
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Network connection: up to 100 m between switches via CAT 5e/6/7
- Direct connection: up to 100 m via CAT 5e/6/7
Speed
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
Network
- Standards: 1000BASE-T
- Data traffic: Layer 2 (UDP blocked)
LEX (Local Extender)
- USB connection: 1 x USB socket type B
- Link connection: 1 x RJ45
- Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
- Mounting: slots for cable ties or optional mounting kit available
- Enclosure material: silver anodised aluminium
REX (Remote Extender)
- USB connection: 1 x USB socket type A
- Link connection: 1 x RJ45
- Available current: up to 1A to USB port
- Power supply: 100-240V AC input, 5V 3A DC output
- Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
- Mounting: slots for cable ties or optional mounting kit available
- Enclosure material: Silver anodised aluminium
Environmental conditions
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10% to 90% relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2, REACH, conflict minerals
Support
- Warranty: 2 years
