Icron EL5353 - 00-00382
1 port, extends DVI (HD & Full-HD) and USB 2.0 connections via CAT5e/6/7 up to 100 meters
Listpris:
11 790,90 kr*
Pris för återförsäljare - Inloggning
13 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
Tillverkarens artikelnummer:
00-00382
Vårt artikelnummer:
760047
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "Icron EL5353 - 00-00382"
The EL5353 extends DVI uncompressed HD video, audio and USB 2.0 up to 100 metres. This KVM extender can be used in applications for ProAV, interactive digital signage, medical and industrial environments. Video resolution is 1920 x 1200 with 24-bit colour depth and it supports USB 2.0 throughput of up to 40 Mbps. Video quality remains high even at full 100-metre distance.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB cable, DVI cable, quick start guide, power adapter with cable
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB cable, DVI cable, quick start guide, power adapter with cable
| Graphic Port: | DVI |
|---|---|
| Keyboard & Mouse: | USB |
| Option: | Audio, Point-to-Point |
| Screen: | Single |
Features

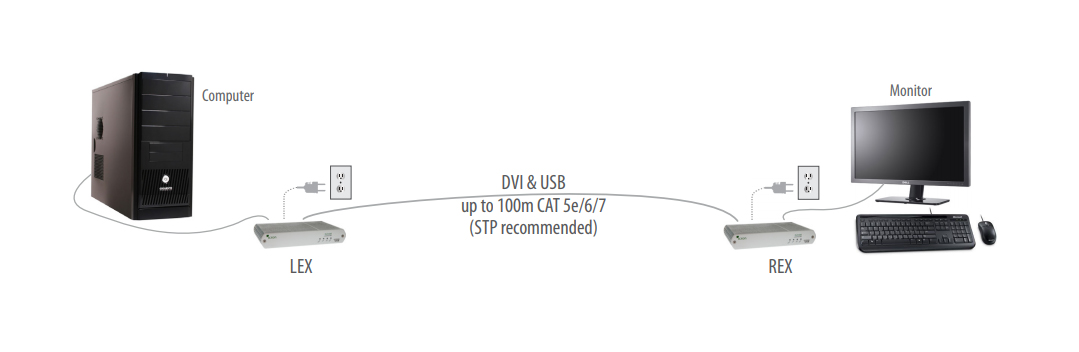

- Point-to-point video and USB extension up to 100 m via a single CAT 5e/6/7 cable
- Full uncompressed HD video resolution of 1920 x 1200
- 24-bit colour depth
- USB 2.0 throughput support up to 40 Mbps
- ExtremeUSB suite features:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, OS X, and Linux
- Mounting kit: allows units to be mounted on walls, desks or on trays for 19" racks
- 2 years warranty
Range
- Direct connection: Up to 100 m via a single CAT 5e/6/7 cable
Speed
- USB 2.0: up to 40Mbps
- USB 1.1: up to 12Mbps
Video
- Resolution: High resolution 1920 x 1200
- Colour depth: 24 bit colour depth
- Latency: Less than 1ms
LEX (Local Extender)
- Video connection: 1 x DVI
- USB connection: 1 x USB type B socket
- Link connection: 1 x RJ45
- Dimensions: 112mm x 175mm x 30mm (4.4" x 6.9" x 1.2")
- Housing material: Silver anodised aluminium
- Power supply: 100-240V AC input, 5V DC output
REX (Remote Extender)
- Video connection: 1 x DVI
- USB connections: 3 x USB type A sockets
- Link connection: 1 x RJ45
- Dimensions: 112mm x 175mm x 30mm (4.4" x 6.9" x 1.2")
- Housing material: Silver anodised aluminium
- Available current: 500mA for each USB port
- Power supply: 100-240V AC input, 5V DC output
Environmental conditions
- Operating temperature: 0°C ~ 40°C (32°F to 104°F)
- Operating humidity: +20% ~ 80% (non-condensing)
Certifications
- EMC: FCC (Class A), CE (Class A), ICES-003
- Environmental: RoHS2 (CE)
Support
- Warranty: 2 years
