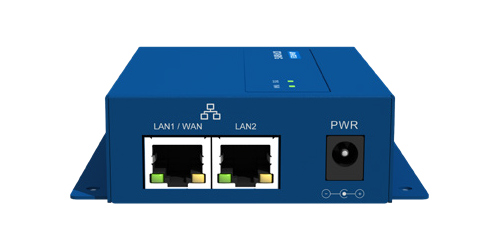

Advantech - ICR-1601G
Industrial Entry-Level Router with GPS, EMEA Cat.4, 2× ETH, no ACC
Listpris:
2 084,25 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
ICR-1601G
Vårt artikelnummer:
263465
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "Advantech - ICR-1601G"
ICR-1600, EMEA/LATAM/APAC, 2x Ethernet, GPS, Metal, Without Accessories
Scope of delivery: Advantech - ICR-1601G
Scope of delivery: Advantech - ICR-1601G
Features
- LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM
- LTE B1, B3, B7, B8, B20
- DIN and Wall mount options
- 2x ETH
- GNSS receiver
- Operating temp. –30 °C to +70 °C, Power input : 5-18VDC (DC Jack), accessory with EU type power adapter
- Certifications: CE
- Diagnostics, VPN support, Firewall, WAN failover
Technical details
Region
EMEA: Yes
Interface
ETH Port(s): 2
Wi-Fi / GPS / PoE
GNSS receiver: Yes
Antenna Connectors
Cellular Antennas: 2 x SMA
GPS Antennas: 1 x SMA
Power
Power Input (DC): 10 ~ 60 VDC
Sleep Mode: Yes
Environment
Temperature (Operating Range): -30 ~ 70°C
Humidity (Operating Range): 0~95%
Mechanism
Dimensions (W x H x D): 90 x 27 x 93 mm
Enclosure (Metal): Metal
Mounting (DIN-rail): Yes
Mounting (Wall): Yes
Software
Advances Software Tool: WA/DMP, WA/VPN
Region
EMEA: Yes
Interface
ETH Port(s): 2
Wi-Fi / GPS / PoE
GNSS receiver: Yes
Antenna Connectors
Cellular Antennas: 2 x SMA
GPS Antennas: 1 x SMA
Power
Power Input (DC): 10 ~ 60 VDC
Sleep Mode: Yes
Environment
Temperature (Operating Range): -30 ~ 70°C
Humidity (Operating Range): 0~95%
Mechanism
Dimensions (W x H x D): 90 x 27 x 93 mm
Enclosure (Metal): Metal
Mounting (DIN-rail): Yes
Mounting (Wall): Yes
Software
Advances Software Tool: WA/DMP, WA/VPN
