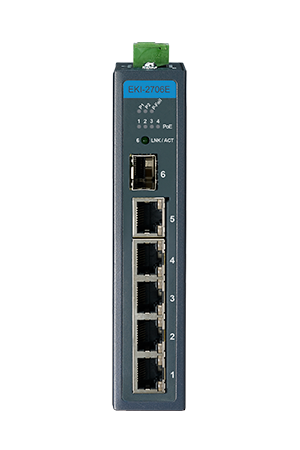

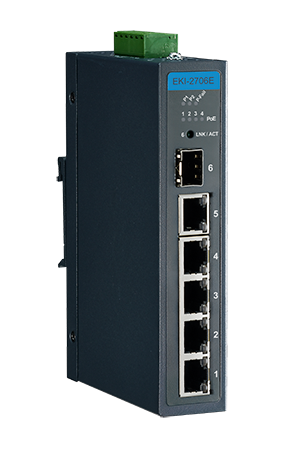

Advantech - EKI-2706E-1GFPI-BE
4FE PoE+1G+1G SFP, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75°C
Tillverkarens artikelnummer:
EKI-2706E-1GFPI-BE
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Product information "Advantech - EKI-2706E-1GFPI-BE"
The EKI-2706 supports 24~48VDC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The EKI-2706 supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2706 has two LED’s to show the link status, transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting quick and easy. EKI-2706 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.
Scope of delivery: Advantech - EKI-2706E-1GFPI-BE
Scope of delivery: Advantech - EKI-2706E-1GFPI-BE
Features
- Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
- Supports jumbo frame transmission up to 9 kbytes
- DIN-rail with IP30 metal mechanism
- Redundant 24~48 VDC power input
- 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports
Technical details
Interface
Port Number: 6
Ethernet Communication
RJ-45 Port Connector Type: 5 x RJ-45 + 1 x SFP ports
RJ-45 Transmission Speed: 10/100 Mbps; 10/100/1000 Mbps
RJ-45 Transmission Distance: 100 m
Fiber Transmission Distance: Up to 110 km
Power
Power Input (DC): 24 ~ 48 VDC
Power Operating Current: 1A @ 24 VDC
Power Consumption: Max 2W
Power Connector Type: 6-pin removable screw terminal (power & relay)
Certification
Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
EMI: CE, FCC Class A
Safety: UL 62368
EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
PoE Information
PoE Port Number: 4
Switch Properties
MAC Table Size: 2K
Packet Buffer Size: 1M bit
Switch Fabric Speed: 12Gbps
Jumbo Frame: 9,216 bytes
Mechanism
Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
IP Rating: IP30
Enclosure (Metal): Metal
Weight: 0.45 kg (1.0 lb)
Mounting: DIN-rail, Wall
Environment
Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range): -40 ~ 85°C (-40 ~ 185°F)
Relative Humidity: 10~95%
