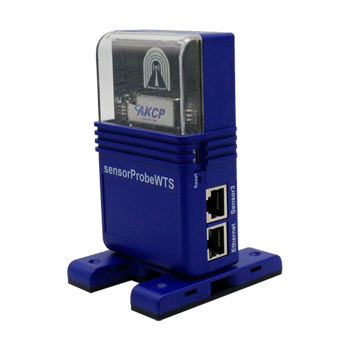

AKCP - SP-WTS - sensorProbe+ Wireless Tunnel Server
1x Ethernet Port & 3x Sensor Ports
Listpris:
5 478,60 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
SP-WTS
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "AKCP - SP-WTS - sensorProbe+ Wireless Tunnel Server"
Monitor up to 30 Wireless Tunnel Devices
The sensorProbe+ Wireless Tunnel Server (SP-WTS) collects data from your AKCP wireless devices (sensorProbe+ Wireless Tunnel / SP-WT). Data is displayed on the local web UI, can be grahped, alerts such as e-mail, SNMP traps can be sent. An optional 4G cellular data modem allows for remote access and SMS notifications.
Your own private, secure LoRa based network with no cloud service or third aprty software required. If you have multiple DP-WTS to be monitored from one interface, we support MQTT/S, SNMP integration to most BMS and NMS software packages, and AKCPro Server our own DCIM central monitoring software.
Scope of delivery: AKCP - SP-WTS
The sensorProbe+ Wireless Tunnel Server (SP-WTS) collects data from your AKCP wireless devices (sensorProbe+ Wireless Tunnel / SP-WT). Data is displayed on the local web UI, can be grahped, alerts such as e-mail, SNMP traps can be sent. An optional 4G cellular data modem allows for remote access and SMS notifications.
Your own private, secure LoRa based network with no cloud service or third aprty software required. If you have multiple DP-WTS to be monitored from one interface, we support MQTT/S, SNMP integration to most BMS and NMS software packages, and AKCPro Server our own DCIM central monitoring software.
Scope of delivery: AKCP - SP-WTS
Features
- USB 5VDC power input
- SNMPV3, IPV6, MQTT/S, RADIUS, TACACS
- 3x sensor ports – 10/100 Ethernet
- Optional 4G cellular modem with external antenna
- Optional GPS with external antenna
Technical details
Status Indication
LED indication for power
LED for Radio connectivity
LED for Status
Components
Manufactured using highly integrated, low power surface mount technology to ensure long term reliability.
Operating Environment
Temperature : Min. -15° C – Max.50° C
Humidity: Min. 20% – Max. 80% (Non-Condensing)
MTBF
1,400,000 Hours based on field experience with sensorProbe units.
Connectivity
Ethernet 10/100 Mbps
Optional Integrated 4G cellular modem with external antenna
Optional GPS with external antenna (requires 4G modem)
Inputs
1x USB for LoRa devices adding/software upgrade
1x 10/100 Ethernet Port
3x intelligent sensor ports for connecting AKCP wired sensors
Optional Modbus RS485
LoRa (R) Radio Regional plans
– EU868 : 863~868Mhz Max TX Power +14dBm Duty Cycle 1%
– US915: 903~915Mhz Max TX Power +17dBm
– AS923 : 920~925Mhz Max TX Power +14dBm Duty Cycle 1%
– KR920 (Korea) : 922~923Mhz Max TX Power +14dBm Duty Cycle 1%
– IL917 (Israel) : 915~917Mhz Max TX Power +14dBm Duty Cycle 1%
Certification
FCC Part 15C, CE EN300220-2
Software features
– up to 30 Wireless device connected
– up to 32 Wireless sensors can be graphed
– Total of up to 400 sensors can be online (Wireless and Virtual)
Power
External 5.5V 3A Power Adapter
Dimension
111 (W) x 62 (H) x 87 (D)
Mounting
Desktop, wall mount, DIN rail, Magnetic
Status Indication
LED indication for power
LED for Radio connectivity
LED for Status
Components
Manufactured using highly integrated, low power surface mount technology to ensure long term reliability.
Operating Environment
Temperature : Min. -15° C – Max.50° C
Humidity: Min. 20% – Max. 80% (Non-Condensing)
MTBF
1,400,000 Hours based on field experience with sensorProbe units.
Connectivity
Ethernet 10/100 Mbps
Optional Integrated 4G cellular modem with external antenna
Optional GPS with external antenna (requires 4G modem)
Inputs
1x USB for LoRa devices adding/software upgrade
1x 10/100 Ethernet Port
3x intelligent sensor ports for connecting AKCP wired sensors
Optional Modbus RS485
LoRa (R) Radio Regional plans
– EU868 : 863~868Mhz Max TX Power +14dBm Duty Cycle 1%
– US915: 903~915Mhz Max TX Power +17dBm
– AS923 : 920~925Mhz Max TX Power +14dBm Duty Cycle 1%
– KR920 (Korea) : 922~923Mhz Max TX Power +14dBm Duty Cycle 1%
– IL917 (Israel) : 915~917Mhz Max TX Power +14dBm Duty Cycle 1%
Certification
FCC Part 15C, CE EN300220-2
Software features
– up to 30 Wireless device connected
– up to 32 Wireless sensors can be graphed
– Total of up to 400 sensors can be online (Wireless and Virtual)
Power
External 5.5V 3A Power Adapter
Dimension
111 (W) x 62 (H) x 87 (D)
Mounting
Desktop, wall mount, DIN rail, Magnetic
