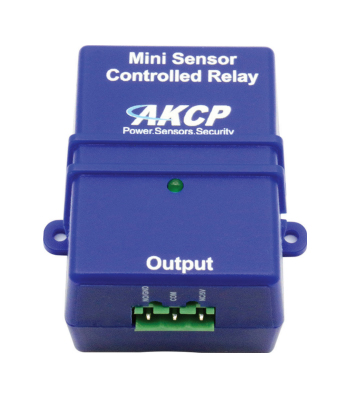

AKCP - MSCR - Mini Sensor Controlled Relay
Mini sensor relay for controlling larger relays (output: 200mA - 5V DC)
Listpris:
774,15 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
MSCR
Vårt artikelnummer:
940194
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "AKCP - MSCR - Mini Sensor Controlled Relay"
Drive larger relays with low current output from the sensorProbeX+ or sensorProbe2+
If you have an equipment with a relay that you would like to switch based on sensor input, this adapter will output 200mA – 5V DC based on a sensors status. Use this smaller relay as to drive the larger relay on your appliance.
Suitable for:
If you have an equipment with a relay that you would like to switch based on sensor input, this adapter will output 200mA – 5V DC based on a sensors status. Use this smaller relay as to drive the larger relay on your appliance.
Suitable for:
- SP1+ Basic
- SP1+ Professional
- SP2+ Basic
- SP2+ Professional
- SP2+ Basic LCD
- SP2+ Professional LCD
Technical details
Configuration
2 position switch configurations
- 1. 5V and GND contacts (0.2A)
- 2. Free contacts
Output
3 pin termninal Block
- NO, NC, COM
- 5V, GND, COM
Free Contact Voltage
24 VDC, Maximum 30 VDC
120 VAC
Relay Ratings
Contact Rating –
+ Contact Rated Load is 1Amp at 24 VDC
+ Contact Rated Load is 1Amp at 120 VAC
Max. Operating Voltage 30 VDC, 120 VAC
Max. Operating Current 1 Amp
Max. Switched Power: 24W / 120VA.
Status Indication
LED indication for Relay active state
Operating Temperature
-40°C to 80°C
Storage Temperature
-40°C to 80°C
Endurance
Max. Switching Rate:
+ 300ops./ min. (no load).
+ 30ops./ min. (rated load).
Expected Mechanical Life: 5 million ops (no load).
Expected Electrical Life: 100,000 ops (rated load).
Minimum Load: 1mA @ 1VDC.
Interface
Communications cable
RJ-45 jack to sensor using UTP CAT5e/6 cable
Power source
Powered by the controller unit. No additional power needed
Power Consumption
Typical 150 mWatt, 30 mA
Maximum Cable Length
The Sensor Controlled Relay can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 100 feet, or 30 meters using standard CAT5/6 LAN cable
Dimensions
56 x 55 x 33.3 mm
Mounting
DIN rail mounting
Screw mounting
Sensor count
1
Configuration
2 position switch configurations
- 1. 5V and GND contacts (0.2A)
- 2. Free contacts
Output
3 pin termninal Block
- NO, NC, COM
- 5V, GND, COM
Free Contact Voltage
24 VDC, Maximum 30 VDC
120 VAC
Relay Ratings
Contact Rating –
+ Contact Rated Load is 1Amp at 24 VDC
+ Contact Rated Load is 1Amp at 120 VAC
Max. Operating Voltage 30 VDC, 120 VAC
Max. Operating Current 1 Amp
Max. Switched Power: 24W / 120VA.
Status Indication
LED indication for Relay active state
Operating Temperature
-40°C to 80°C
Storage Temperature
-40°C to 80°C
Endurance
Max. Switching Rate:
+ 300ops./ min. (no load).
+ 30ops./ min. (rated load).
Expected Mechanical Life: 5 million ops (no load).
Expected Electrical Life: 100,000 ops (rated load).
Minimum Load: 1mA @ 1VDC.
Interface
Communications cable
RJ-45 jack to sensor using UTP CAT5e/6 cable
Power source
Powered by the controller unit. No additional power needed
Power Consumption
Typical 150 mWatt, 30 mA
Maximum Cable Length
The Sensor Controlled Relay can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 100 feet, or 30 meters using standard CAT5/6 LAN cable
Dimensions
56 x 55 x 33.3 mm
Mounting
DIN rail mounting
Screw mounting
Sensor count
1
