AKCP - MOD-A - Modbus Adapter
Modbus to SNMP adapter (extendable up to max. 550 metres via CAT5/6)
Listpris:
649,00 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
MOD-A
Vårt artikelnummer:
940212
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "AKCP - MOD-A - Modbus Adapter"
Convert the MOD/EXP port on the sensorProbeX+ and sensorProbe2+ from an RJ45 into 2 wire serial cable.

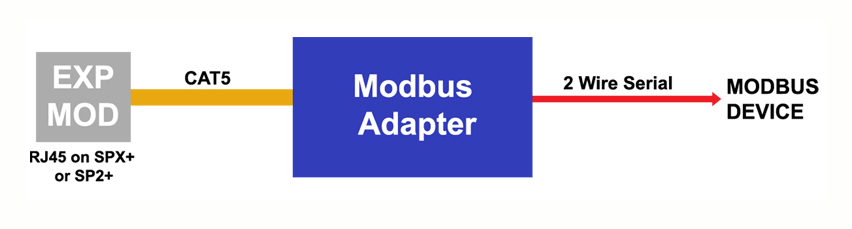

sensorProbeX+ comes equipped with an RS485 Modbus and Expansion port. When using this RJ45 port to connect Modbus appliances, the Modbus to SNMP Adapter makes it easier to connect a 2 wire serial bus cable to the RJ45 port, converting the RJ45 connector into a 3 pin terminal block connection.
Suitable for:
sensorProbeX+ comes equipped with an RS485 Modbus and Expansion port. When using this RJ45 port to connect Modbus appliances, the Modbus to SNMP Adapter makes it easier to connect a 2 wire serial bus cable to the RJ45 port, converting the RJ45 connector into a 3 pin terminal block connection.
Suitable for:
- SP1+ Basic
- SP1+ Professional
- SP2+ Basic
- SP2+ Professional
- SP2+ Basic LCD
- SP2+ Professional LCD
Technical details
Connector: 3 pin phoenix connector: A+, B+, GND
Electrical: no galvanic isolation
Components: Manufactured using highly integrated, low power surface mount technology to ensure long term reliability.
Operating Environment
Temperature : Min. -35° C – Max.80° C
Humidity: Min. 20% – Max. 80% (Non-Condensing)
Interface
Communications cable: RJ-45 jack to sensor using UTP CAT5e/6 cable
Power source: Powered by the controller unit. No additional power needed
Power Consumption: Typical 0 mWatt, 0 mA
Maximum Cable Length: The Modbus Adaptor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 1800 feet, or 550 meters using standard CAT5/6 LAN cable

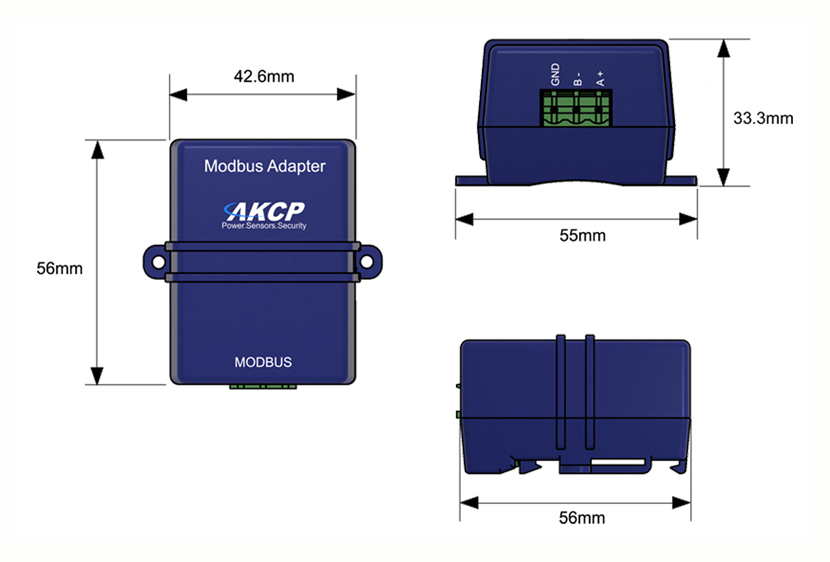

Dimensions: 56 x 55 x 33.3 mm
Mounting: DIN rail mounting, Screw mounting
Connector: 3 pin phoenix connector: A+, B+, GND
Electrical: no galvanic isolation
Components: Manufactured using highly integrated, low power surface mount technology to ensure long term reliability.
Operating Environment
Temperature : Min. -35° C – Max.80° C
Humidity: Min. 20% – Max. 80% (Non-Condensing)
Interface
Communications cable: RJ-45 jack to sensor using UTP CAT5e/6 cable
Power source: Powered by the controller unit. No additional power needed
Power Consumption: Typical 0 mWatt, 0 mA
Maximum Cable Length: The Modbus Adaptor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 1800 feet, or 550 meters using standard CAT5/6 LAN cable
Dimensions: 56 x 55 x 33.3 mm
Mounting: DIN rail mounting, Screw mounting
