AKCP - E-Sensor8 - Expansion with 8 Ports and DIN rail mounting
RJ-45 port monitoring expansion, 8 RJ45 ports, 2 expansion ports (incl. 5ft cable & DIN rail mounting)
Listpris:
4 406,70 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
E-IS8N-DIN
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "AKCP - E-Sensor8 - Expansion with 8 Ports and DIN rail mounting"
The E-sensor8 is an expansion module that has 8 RJ-45 intelligent sensor ports and is connected to any of the 4 RJ-45 expansion ports located on the front panel of the securityProbe 5E base units. They are connected using standard CAT5 LAN cable.
The E-Sensor8 may also be daisy chained using the E-Out/E-In ports on other expansion boards.

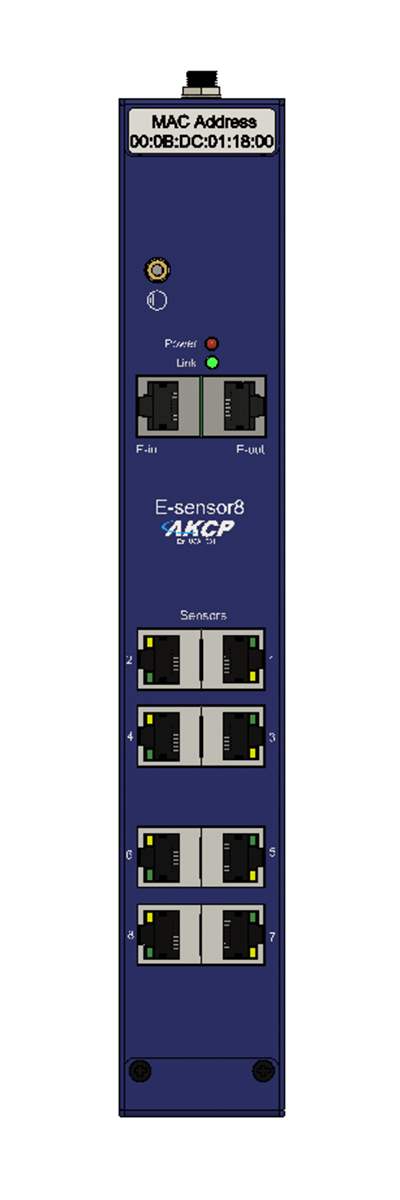

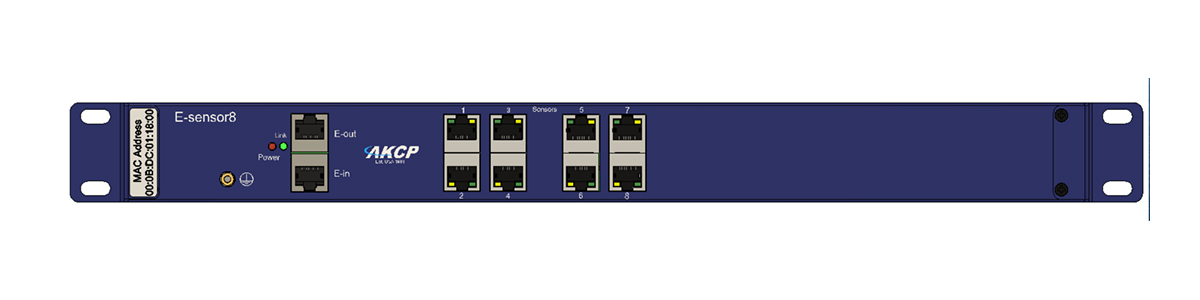

The E-Sensor8 is available in a 1U rack mounted version with standard rackmount brackets, or in a short DIN rail mounted version. The product code for this version is E-IS8N-DIN.
Complete Connectivity
Any sensor within AKCP’s complete line of intelligent sensors can be connected to the intelligent sensor ports which are located on the rear of the unit. 16 LED’s on the front provide each sensors visual condition, 8x red for status and 8x green for online.
The expansion boards can be daisy chained together using the units input, or E-in and output, E-out port. These also are RJ-45 ports and use standard CAT5 cable.
These E-Boards can be extended from the securityProbe 5Es base unit or from each other up to 300 meters, or roughly 1000 feet.
Scope of delivery: AKCP - E-IS8N-DIN
The E-Sensor8 may also be daisy chained using the E-Out/E-In ports on other expansion boards.
The E-Sensor8 is available in a 1U rack mounted version with standard rackmount brackets, or in a short DIN rail mounted version. The product code for this version is E-IS8N-DIN.
Complete Connectivity
Any sensor within AKCP’s complete line of intelligent sensors can be connected to the intelligent sensor ports which are located on the rear of the unit. 16 LED’s on the front provide each sensors visual condition, 8x red for status and 8x green for online.
The expansion boards can be daisy chained together using the units input, or E-in and output, E-out port. These also are RJ-45 ports and use standard CAT5 cable.
These E-Boards can be extended from the securityProbe 5Es base unit or from each other up to 300 meters, or roughly 1000 feet.
Scope of delivery: AKCP - E-IS8N-DIN
| Device: | Expansion Board |
|---|---|
| Device Classes: | 8 Sensors |
Technical details
Dimension
Size 8.5″ x 5.43″ x 1.80″
Weight 0.8 Kg
Expansion Port
2x RJ-45 Expansion Ports
115.2K bps Data Transfer Rate
Mounting
1U Rack Mount Standard
Rack mount brackets included
Compatible with AKCP’s DIN and rack mount trays
Power
External 5.5 VDC 3A Power Adapter
Input Voltage and Current ratings: 100V~240V – 1A
Typical 5.025 Watt, 0.67A
Status Indication
LED indication for power
LED for Expansion port connectivity
LED for sensor online and threshold status
Components
Manufactured using highly integrated,low power surface mount technology to ensure long term reliability.
Operating Environment
Temp :Min. -35° C – Max. +55° C
Humidity :Min. 20% – Max. 80% (Non-Condensing)
MTBF
400,000 Hours
Inputs
8x RJ-45 ports for connecting AKCP sensors
1x RJ-45 expansion module input (E-in)
Outputs Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports
1 RJ-45 expansion module output (E-out)
E-Modules
* Daisy chain multiple E-modules including E-sensor8 and E-opto16 combined
* Uses standard RJ-45 connections and CAT5 LAN cable
* Maximum extension cable run length: 300 meters (1000 feet)
* Compatible with AKCP intelligent sensors, except for smart sensors for SP+ only and TMP NIST2/3
* Connect up to 500 AKCP intelligent sensors to one securityProbe5ES
* Connect up to 150 AKCP intelligent sensors to one sensorProbe+ (up to 4 expansion units)
