AKCP - DCW075 - ±40-60 VDC Power Supply
DC to DC converter which generates an output of 7.5 volts
Listpris:
714,60 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
DCW075
Vårt artikelnummer:
940103
Frågor? Vi hjälper dig gärna! → Kontaktformulär

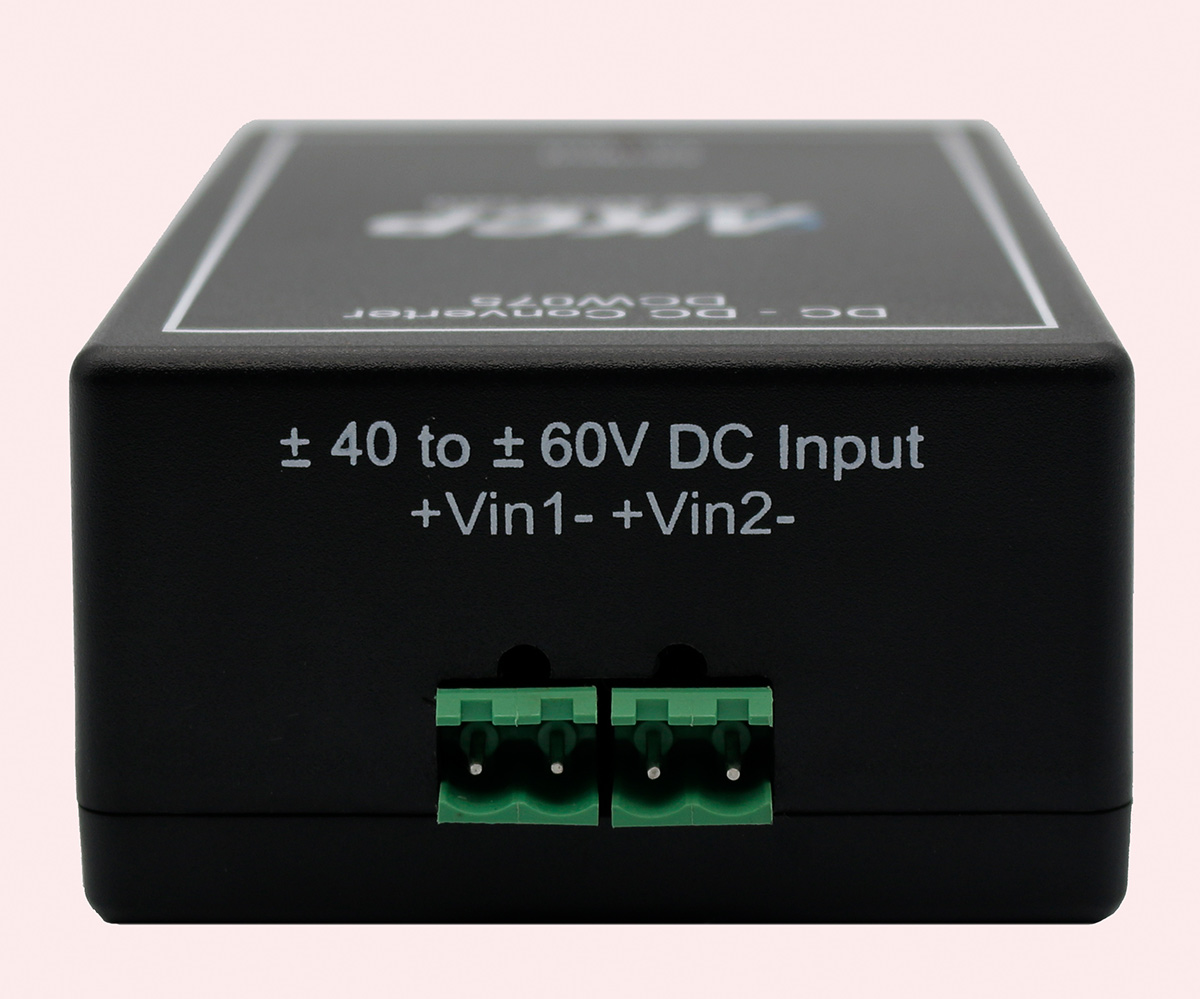

Produktinformation "AKCP - DCW075 - ±40-60 VDC Power Supply"
The ±40-60 VDC input power supply is a DC to DC converter which generates an output of 7.5 volts. This DC power supply comes in an external box for use with AKCP sensorProbe (7.5 VDC version) and securityProbe devices. For sensorProbe8-X20 and X60 devices, as well as securityProbe-5E and X20/X60 devices there is an option to install this power supply inside the box.
This power supply enhances the capability of 48 VDC generally used in telecommunications applications by generating 15 watts output power. The power supply has maximum capacity of a 2-ampere load.
Our new power supply is comprised of several safety features; isolated ground between input and output, a redundant second input channel which is automatically activated in the event of primary channel failure, and over-voltage protection, fuse protection, protection against input voltage reversal.
Scope of delivery: AKCP - DCW075
This power supply enhances the capability of 48 VDC generally used in telecommunications applications by generating 15 watts output power. The power supply has maximum capacity of a 2-ampere load.
Our new power supply is comprised of several safety features; isolated ground between input and output, a redundant second input channel which is automatically activated in the event of primary channel failure, and over-voltage protection, fuse protection, protection against input voltage reversal.
Scope of delivery: AKCP - DCW075
Features
- ±40-60 VDC input with 7.5VDC output
- AC power source is no longer needed
- Ideal for use in telecommunications applications
Technical details
Input Range: ±40 – 60 VDC
Output: 7.5 VDC
Power Output: 15 Watt
Switching Frequency: 400 KHz
Reversed Protection: Yes
Dual Input: Yes
Output Short Circuit Protection: Continuous Power Cycle
Cooling: Free Air Convection
Over Voltage Protection: Active Disable
Operating Temperature Range: -40 to +60 Celsius
Input/Output Isolation: 1,000 VDC
Input Range: ±40 – 60 VDC
Output: 7.5 VDC
Power Output: 15 Watt
Switching Frequency: 400 KHz
Reversed Protection: Yes
Dual Input: Yes
Output Short Circuit Protection: Continuous Power Cycle
Cooling: Free Air Convection
Over Voltage Protection: Active Disable
Operating Temperature Range: -40 to +60 Celsius
Input/Output Isolation: 1,000 VDC
