AKCP - CCU - Cabinet Control Unit
Expansion module for the Door Control Unit or securityProbe Series
Listpris:
4 049,40 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
CCU
Vårt artikelnummer:
940159
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "AKCP - CCU - Cabinet Control Unit"
AKCP takes security a step further with the server Cabinet Control Unit!
Our integrated Access Control system doesn’t stop at simply securing entry and exit points. Now that you have your perimeter secured you can move on to securing your equipment and perhaps more important, your information.
It’s very common for companies to have situations where they only want a limited group of high-security clearance personnel to have access to their most sensitive information and servers.
AKCP’s Cabinet Access Control Unit allows for card reader access to be added to your server cabinets.
For large buildings and the data center it’s possible to daisy chain the cabinet controllers which grants access control for up to hundreds of server cabinets and doors.
Expansion module for the Door Control Unit or securityProbe Series.
Cabinet Control Unit (CCU) ship with IEC adapter with fixed EUR or US plug.
Includes:
Our integrated Access Control system doesn’t stop at simply securing entry and exit points. Now that you have your perimeter secured you can move on to securing your equipment and perhaps more important, your information.
It’s very common for companies to have situations where they only want a limited group of high-security clearance personnel to have access to their most sensitive information and servers.
AKCP’s Cabinet Access Control Unit allows for card reader access to be added to your server cabinets.
For large buildings and the data center it’s possible to daisy chain the cabinet controllers which grants access control for up to hundreds of server cabinets and doors.
Expansion module for the Door Control Unit or securityProbe Series.
Cabinet Control Unit (CCU) ship with IEC adapter with fixed EUR or US plug.
Includes:
- 1xCabinet Access Control Unit
- 1x EM Card Reader
- 1x EM Cabinet Lock
- SP1+ Basic
- SP1+ Professional
- SP2+ Basic
- SP2+ Professional
- SP2+ Basic LCD
- SP2+ Professional LCD
Features
- Arrange access by site, floors, rooms, or cabinets.
- Restrict access for certain times, days, users or security levels.
- Set up adjustable user groups with virtually any customizable preference your company, group, or organization may need.
- AKCPro Server Management Software provides you with User / Groups Management, User Access Schedules, Advanced Analytics, Notifications, Real time video, Time-Stamped Video playback and much more…Unlock doors remotely using software control.
- Connect a wide variety of electronic lock types.
- Time and Attendance integration with AKCPro Server.
- Compatible with a complete range of AKCP Intelligent Sensors
Technical details
Dimension
Size : 13.20 cm x 5.38 cm x 3.40 cm
Weight : 0.15 Kg

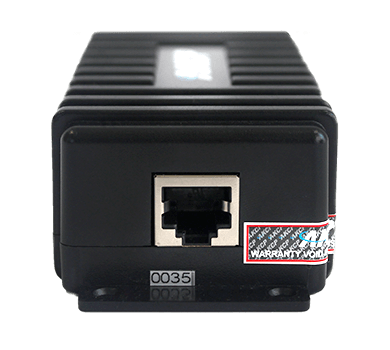

Expansion Port
2x RJ-45 Expansion Ports
115.2K bps Data Transfer Rate
Mounting
Rack mount brackets included
Compatible with AKCP’s DIN and rack mount trays

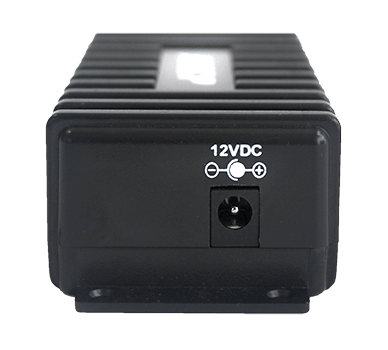

Power
External 12 VDC >=1A Power Adapter
Input Voltage and Current ratings : 100V~240V – 1A
Typical 6 Watt, 0.5 A
Status Indication
LED indication for power
LED for Expansion port connectivity
Components
Manufactured using highly integrated, low power surface mount technology to ensure long term reliability.
Operating Environment
Temp: Min. -35° C – Max. +55° C
Humidity: Min. 20% – Max. 80% (Non-Condensing)
MTBF
400,000 Hours

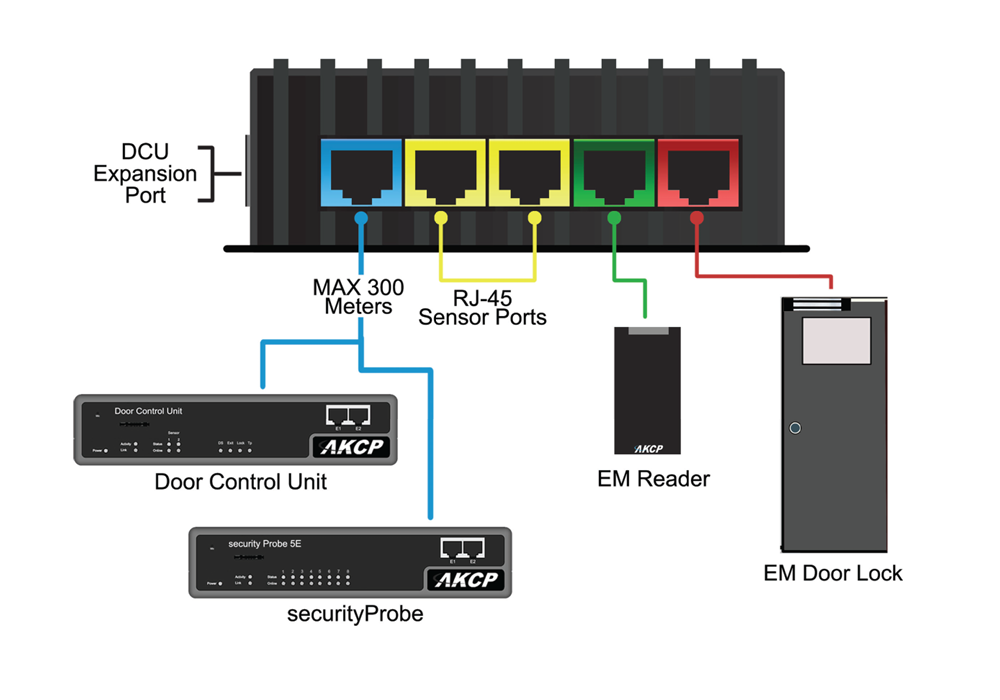

Inputs
2x RJ-45 ports for connecting AKCP sensors
1x Wiegand RFID Reader
1x Door Lock Control.
1x RJ-45 expansion module input (E-in)
Outputs
1 RJ-45 expansion module output (E-out)
E-Modules
* Daisy chain multiple E-modules including E-sensor8 and E-opto16 combined
* Uses standard RJ-45 connections and CAT5 LAN cable
* Maximum extension cable run length: 300 meters (1000 feet)
* Compatible with AKCPs complete line of intelligent sensors
* Connect up to 500 AKCP sensors to one securityProbe5ES
* Connect up to 150 AKCP sensors to one sensorProbe+ (up to 4 expansion units)
Supported Lock Rating
The CCU can control a 12V Door Lock with a maximum current draw no greater than 500mA.
Important Note
Requires the AKCPro Server for Access Control and Sensor Port configurations
