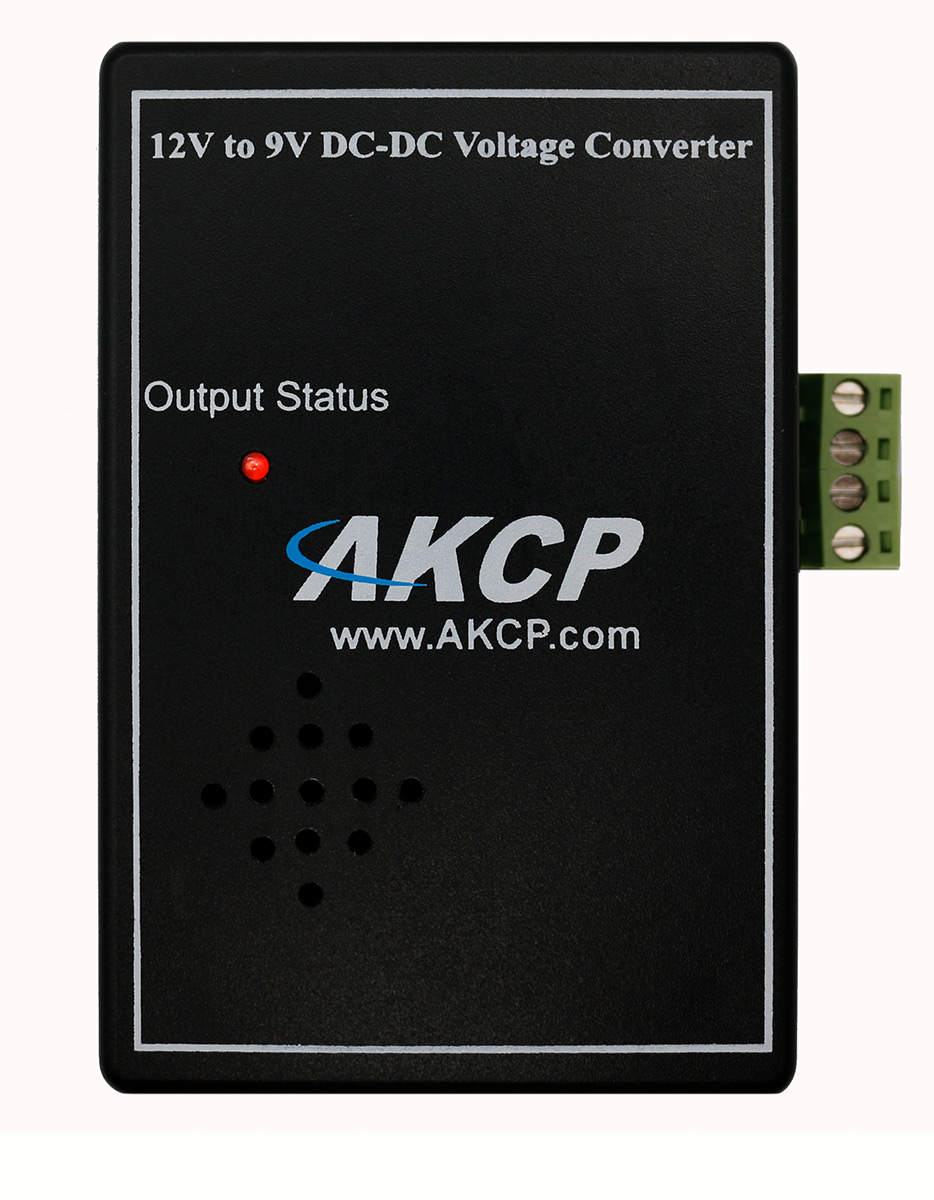

AKCP - 12VDC - 12 VDC Power Supply
DC to DC converter which generates an output of 9.0 volts
Tillverkarens artikelnummer:
12VDC
Vårt artikelnummer:
940104
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Product information "AKCP - 12VDC - 12 VDC Power Supply"
AKCP has implemented the 12-20 VDC input power supply. The product is a DC to DC converter which generates an output of 9.0 volts. This DC power supply comes in an external box for use with all AKCP sensorProbe and securityProbe devices.
This power supply includes a redundant second input channel which is automatically activated in the event of primary channel failure, and over-voltage protection, protection against input voltage reversal.
Scope of delivery: AKCP - 12VDC
This power supply includes a redundant second input channel which is automatically activated in the event of primary channel failure, and over-voltage protection, protection against input voltage reversal.
Scope of delivery: AKCP - 12VDC
Technical details
Input Range: 12 – 20 VDC
Output: 9.0 VDC
Power Output: 13.5 Watt
Reversed Protection: Yes
Dual Input: Yes
Cooling: Free Air Convection
Over Voltage Protection: Up to 60 VDC 10 ms
Operating Temperature Range: -20 to +60 Celsius
Input/Output Isolation: No
Input Range: 12 – 20 VDC
Output: 9.0 VDC
Power Output: 13.5 Watt
Reversed Protection: Yes
Dual Input: Yes
Cooling: Free Air Convection
Over Voltage Protection: Up to 60 VDC 10 ms
Operating Temperature Range: -20 to +60 Celsius
Input/Output Isolation: No
