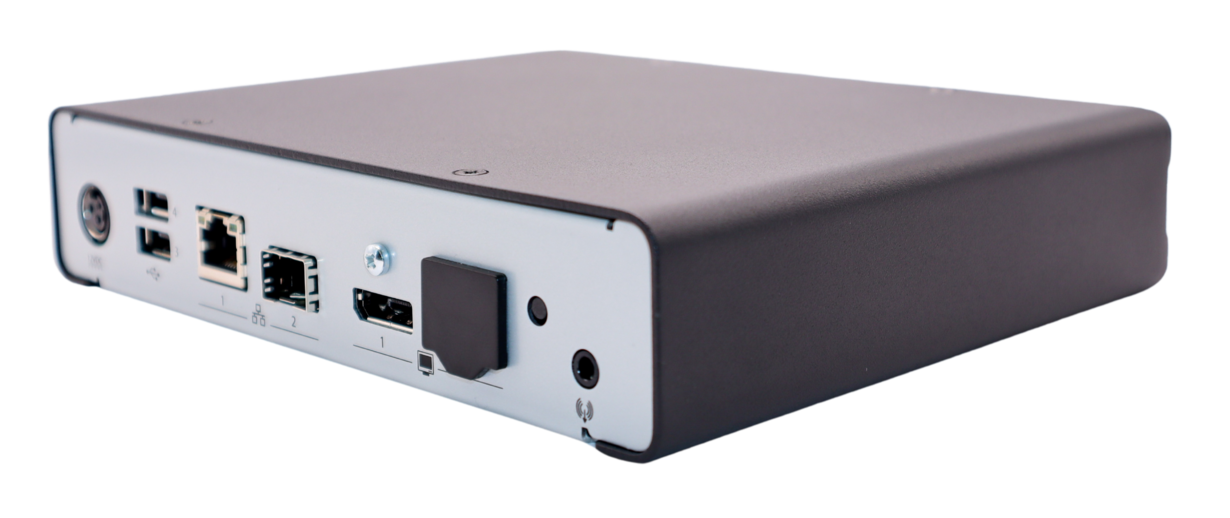

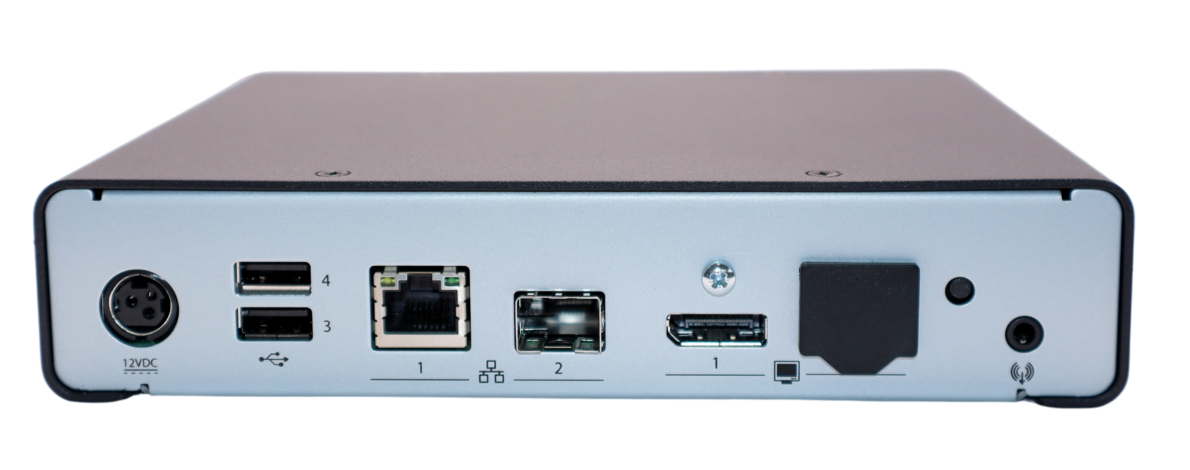

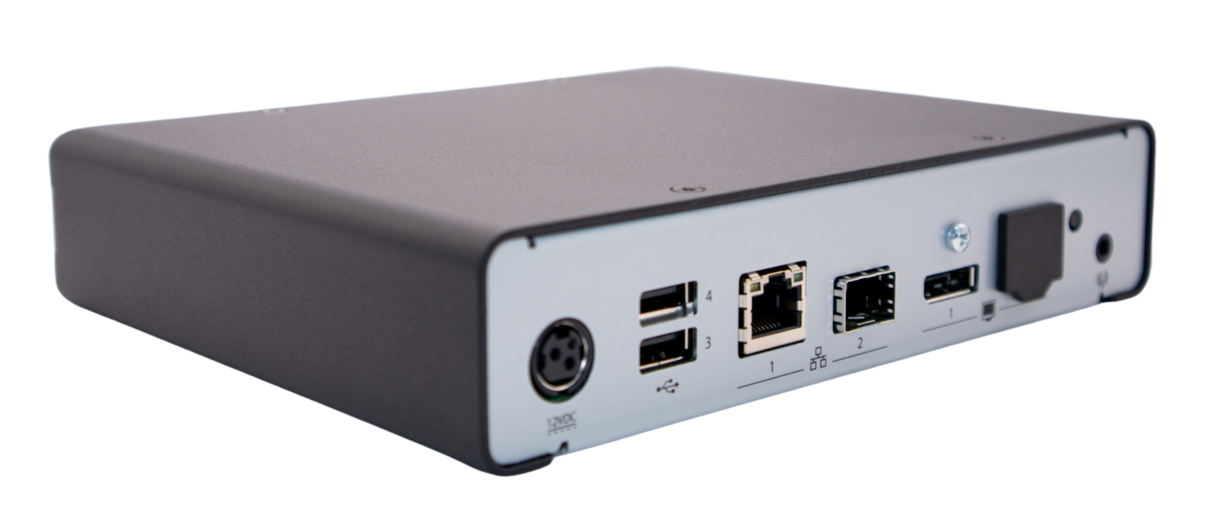

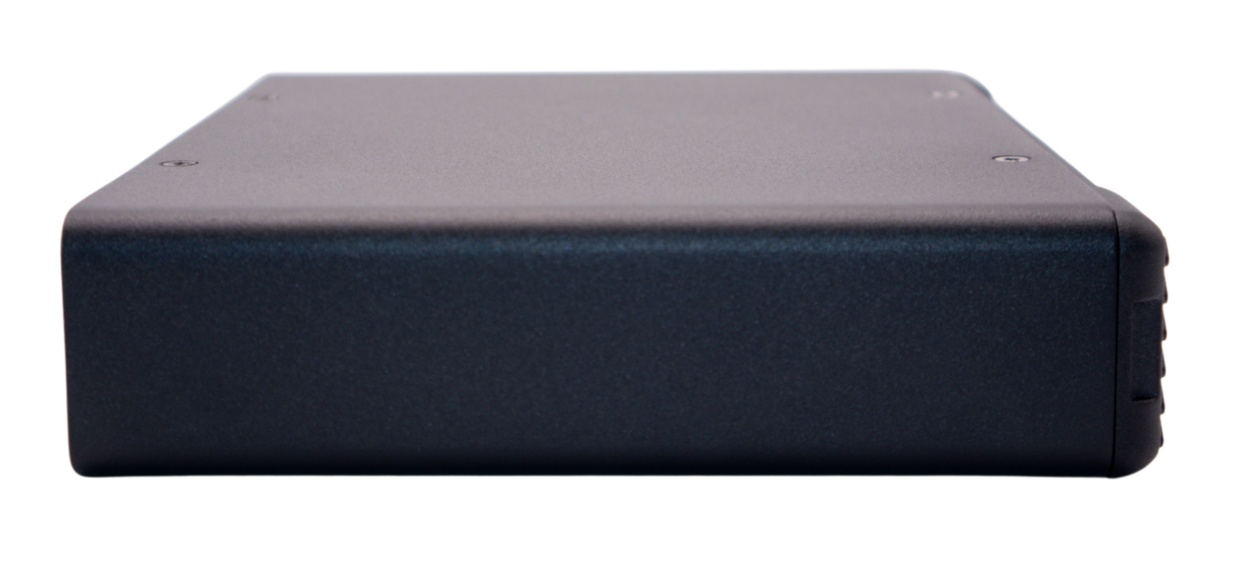

ADDERView Matrix - C1100 User Station
A single video head User Station (USR) for extension and matrix of video, audio and USB over a single cable.
Listpris:
10 561,00 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
AVM-C1100-USR
Vårt artikelnummer:
490577
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "ADDERView Matrix - C1100 User Station"
Part of the ADDERView Matrix C1000 Series, the ADDERView Matrix C1100 USR enables the use of standard infrastructure to extend the user away from the computer equipment and infrastructure.
PACKAGE CONTENTS:
- ADDERView Matrix C1100 User Station
- PSU-IEC-12VDC-1.5A: Mains power supply
- IEC PSU cable of country code
Features
- Flexible and Scalable
- Fast Video and USB Switching
- Unlimited Extension Distances
- Perfect Digital Video in Real-Time
- USB 2.0 with Class Controlo
- Digital Audio
- Sharing and Collaboration
- EDID Management
- 2k Resolution Support
- Plug and Play
Specifications
Video Information (1 Screen)
- Maximum Resolution (1 Screen): 2560 x 1600
- Frame Rate (1 Screen): 60
- Color Depth (1 Screen): 8 bpc
Console Connections
- USB A: 4x 2.0, True Emulation,Full Speed,Low Speed,High Speed
- Full Size DisplayPort
Link Ports
- 8p8c (RJ45): 1x
- SFP: 1x
Audio Connections
- Audio Type: Analog/Digital
- Channels: 2x
- Audio Direction: Bi-directional
- Audio Additional Information: Digital Audio 2 channel linear PCM
- Size (bit): 16
- Speed (kHz): 48
- Audio In Port: 1x
- Audio Out Port: 1x 3.5mm jack
Cable Requirements
- CAT5e and above: 100m / 328ft
Network Support
- Bandwidth: 1GbE
- 10/100 Support: No
Environmental
- Operating Temperature Range °C / °F: 0 to 40 °C / 32 to 104 °F
- Storage Temperature °C / °F Range: 0 to 40 °C / 32 to 104 °F
- Operating Humidity (%): 10% - 90% (non-condensing)
- Storage Humidity (%): 10% - 90% (non-condensing)
- Altitude m/ft: 2,000 / 6562
- Mean Time Between Failure (MTBF): 340,000
- MTBF Standard: Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
- Temperature Regulation: Fanless
Power Source
- 12V 3-pin: 1x
- Input Power Supply:
- External Power Supply: Unit (see manual)
Power Consumption
- Maximum Power (Watts): 18
- Typical Power (Watts): 7
Physical Design
- Construction Material: Robust metal construction
- U size: 1
- Width (mm) / (in.): 186 / 7.3
- Height (mm) / (in.): 39 / 1.5
- Depth (mm) / (in.): 150 / 5.9
- Flying Lead Length (mm): 300
- Weight (kg) / (lb): 1.1 / 2.4
Approvals and Standards
- Approvals: CE, cULus - E476334, FCC, ICES, UKCA
- Standards ANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003
Other
- Cal Prop 65, China ROHS, EU REACH, UK REACH
