ADDERLink - XDIP
7 098,36 kr*
5 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
-
Beskrivning The ADDERLink XDIP is designed to improve IT scalability for small and medium-sized businesses. Using a standard 1 Gbps IP… Mer
-
Egenskaper Features Perfect digital video Uncompressed video technology provides ultra-low latency and pixel-perfect digital video at… Mer
-
Tekniska detaljer Technical details Video resolution The system supports resolutions up to 1920 x 1200 at 60 Hz. Approvals / Compliance CE… Mer
-
Datablad
-
Tillbehör
Each XDIP unit can be configured as a simple extender or receiver.

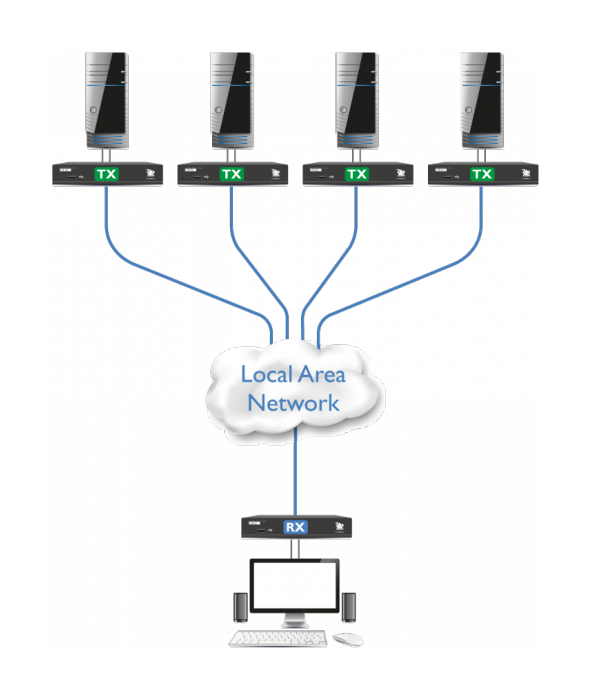

Up to 16 receivers and 256 extenders can be combined in a matrix. This means that the solution can be adapted to the specific application. If the application changes, the units (extenders and receivers) can be reconfigured and adapted.
- Product also available as POE and RED edition.
- Product is delivered as EU version by default. Also available in US and UK versions.
- Powerful KVM extender with KVM matrix function

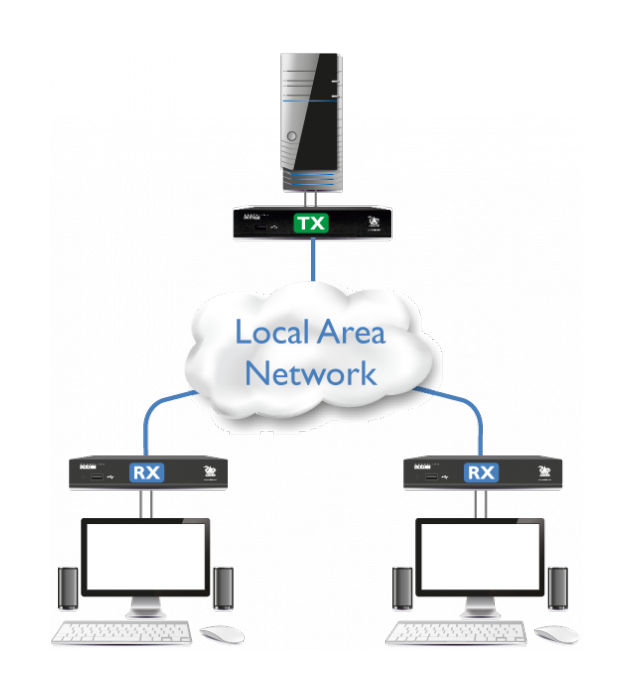

- Configurable as a point-to-point extender or receiver, as well as a small matrix solution
- A single unit can be programmed as a transmitter or receiver
- Remote control via RESTful API or HTTPS web browser
- Support for Power over Ethernet (PoE)
- Local USB and video transmission via connectors
Optional accessories:
- RMK5V: VESA mounting kit (plus screws)
- RMK8: Double rack-mounting bracket incl. four retaining clips and bolts
- RMK10: Wall/table mounting kit (plus screws)
Graphic Port: | DVI, DisplayPort, HDMI |
---|---|
KVM Ports: | 1 Port |
Network: | Single LAN |
Power Supply: | AC Adapter, Single AC |
Remote Users: | 1 User |
Perfect digital video
Uncompressed video technology provides ultra-low latency and pixel-perfect digital video at up to 24 bits per colour at a maximum of 1920 x 1200 over 60 Hz, including 1080p, with real-time control.
EDID management
EDID (Extended Display Identification Data) allows the remote system to accurately reflect the data coming from the source monitor.
Plug and Play
Comes in a zero configuration state, so they work as soon as they are connected, with no drivers or software required.

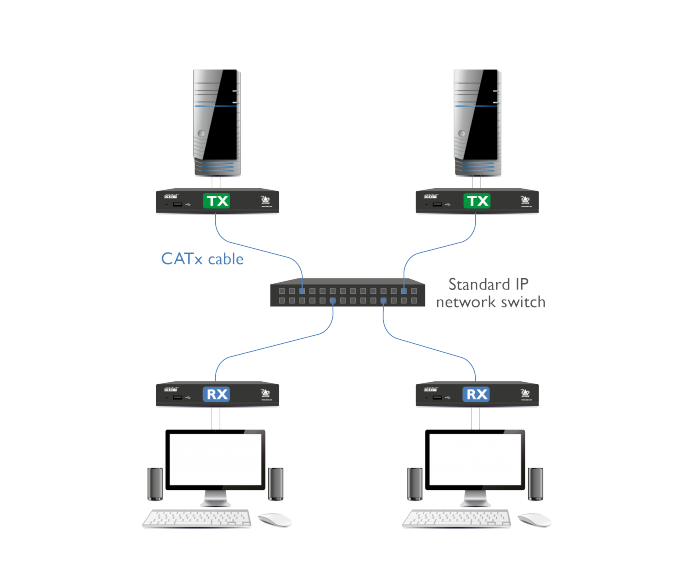

Simple CATx cabling
Analogue audio, video and USB 2.0 HID are transmitted over a widely used SFTP cable that also connects the central switch to the user console (up to 50 m) and computer dongles (up to 10 m).
Video resolution
The system supports resolutions up to 1920 x 1200 at 60 Hz.
Approvals / Compliance
- CE
- FCC
Supports USB 2.0 HID devices (keyboard, mouse, tablet and touch)
Hardware compatibility
All computers with HDMI, USB and analogue audio can be connected to VGA, DVI and DisplayPort with suitable adapters
Operating temperature
0 to 40ºC / 32 to 104ºF
Computer Connections
HDMI, Ethernet 8p8c connector, USB Type B, Audio 3.5mm
Console connections
HDMI, audio 3.5 mm, 3x USB type A, 8p8c Ethernet connector

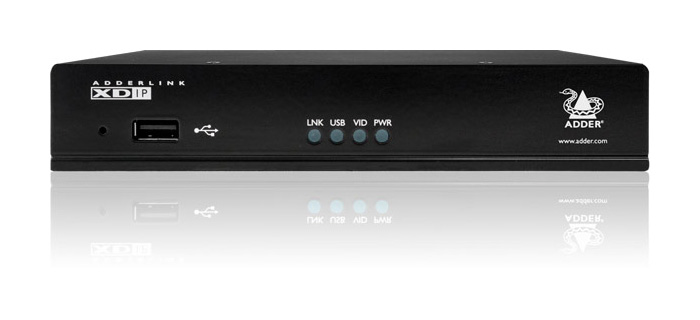

Physical design
- Compact housing, robust metal construction
- 169 mm (w), 31 mm (1.22 in (h))
- 120 mm (d), 0.6 kg (1.3 lbs)
- Package size: W248 mm x D290 x H55 mm
PoE (Power over Ethernet) 802.3af via Ethernet connection or 3-pin DC locking socket (optional: 100-240 VAC 50/60 Hz, 0.7 A, input to power supply unit, 12 V DC, 18 W output from power supply unit)
Software compatibility
All known operating systems. No drivers required.
