ADDERLink - XD150FX-SM

ADDER Technology

Listpris:

20 296,00 kr*

Priser exkl. moms plus fraktkostnader

Leveranstid: För närvarande cirka 3-4 veckor

Priser för större kvantiteter på förfrågan.
Tel: +46 (0) 42-13 60 60 eller e-post: shop@s-connect.se

Tillverkarens artikelnummer: XD150FX-SM

Vårt artikelnummer: 490433

Frågor? Vi hjälper dig gärna! → Kontaktformulär

Produktinformation "ADDERLink - XD150FX-SM"

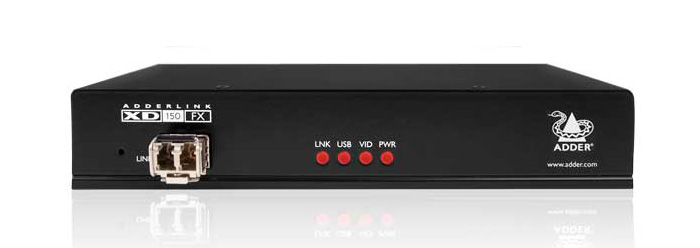

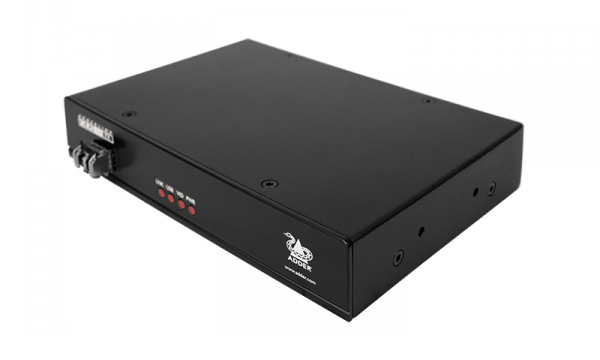

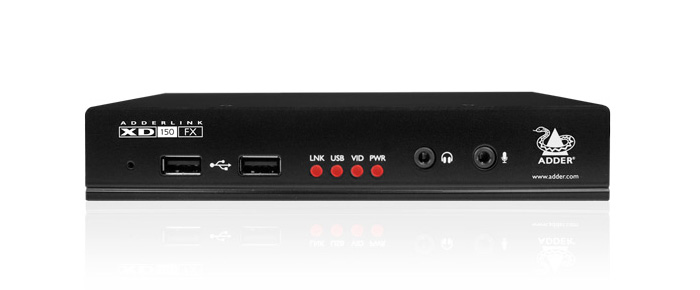

The ADDERLink XD150FX high-performance KVM (keyboard, video, mouse) transmits high-resolution video, USB 2.0 and audio signals up to 4 km. Critical computer hardware can be kept in a safe, temperature-controlled environment. The XD150FX delivers the same desktop experience through lossless real-time extension of the user workstation, including support for a wide range of USB devices.

Set consisting of transmitter and receiver

Scope of delivery: AdderLink XD150FX transmitter, AdderLink XD150FX receiver, power supply, rubber feet, quick start guide

Optional accessories:

RMK8: Two XD150FX rack mounts incl. four mounting brackets and screws.
RMK5V: VESA mounting kit (incl. screws)
RMK10: Wall/table mounting kit (incl. screws)

Graphic Port:	DVI, HDMI
Keyboard & Mouse:	USB
Option:	Audio, Point-to-Point
Screen:	Single

Features

Extension Distances

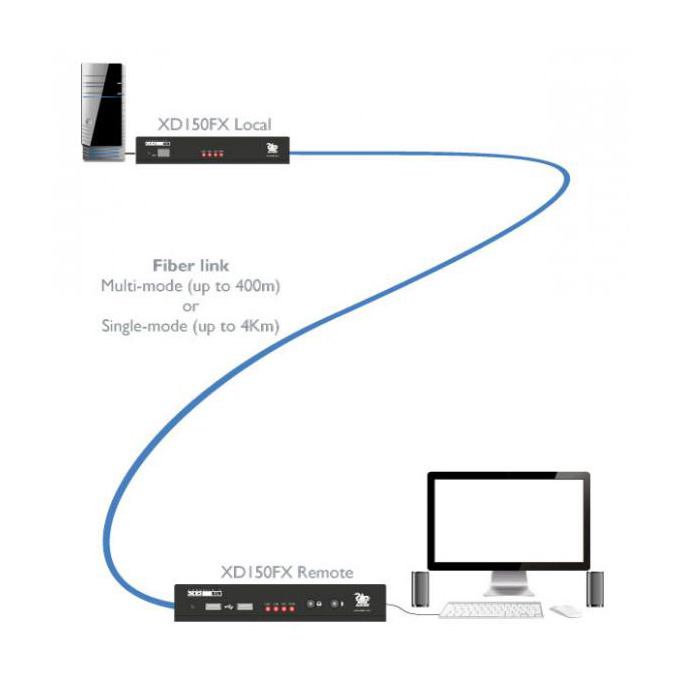

Flexible resolution compared to EXTENSION DISTANCE options, with resolutions up to 2560 x 1600 at 60 Hz at extension distances of up to 150 m (500 ft) for OM2 multimode fibre, increasing to 4 km (2.5 miles) with single mode fibre

Transparent USB 2.0 (low, full, high speed)
For a full range of USB devices, including keyboards, mice, tablets, touchscreens and mass storage devices connected via the built-in 4-port USB hub

Bi-directional analogue audio
Line in/out with microphone and headphone support. The unit delivers CD-quality stereo audio (24-bit sampling at 96 kHz) to transfer audio between local and remote

RS232 support
with RTS/CTS flow control. RS232 can be transferred between units via the option port to a maximum baud rate of 115K2. Adder's Remote Key Switch (RC4) is also supported

Perfect digital video, real-time control
uncompressed video extension, where every pixel of every frame is transmitted lossless and in real time

Fibre extension
SFP cages allow flexible use of fibre types

Plug and Play
Easy installation without additional drivers or software

Locking the power connectors
Locking of the 3-pin DC socket with 2 supplied power supplies

Analogue audio in CD quality
16-bit stereo channel sampled at 44.1 kHz is available to transmit stereo audio for line out from local to remote

Intelligent operation, compatibility and future-proofing
EDID (Extended Display Identification Data) allows the actual characteristics of the monitor to be returned to the computer. KVM switching mode for optimal KVM device compatibility; the entire system can be updated from the computer via flash.

Space-saving rackmount kit
Easily accessible 19" rack mount kit with two units per 1U rack space

REST API support
Full-featured Representational State Transfer (REST) API enabling interaction of authorised third-party control systems

Web interface control
Temperature and status can be displayed and each function can be controlled individually. Web interface security is provided by HTTP digest authentication (RFC 2617) with username and password as requested information

Technical details

Approvals / Compliance

Standards

Hardware compatibility: All computers with DVI, USB and audio.
DVI interface: The system supports resolutions of maximum 2560 x 1600 at 60 Hz.
USB 2.0: Supports USB 2.0 devices (low, full and high speed). Isochronous devices are supported.

Compatibility
All known operating systems.

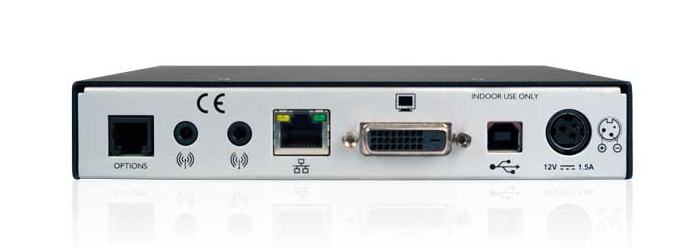

Connections Transmitter (Tx)
