ADDERLink - AL-IPEPS-DA
KVM over IP Unit (VGA, PS/2 or USB) incl. local control
Listpris:
7 288,92 kr*
Pris för återförsäljare - Inloggning
Leveranstid: För närvarande cirka 3-4 veckor
Tillverkarens artikelnummer:
AL-IPEPS-DA
Vårt artikelnummer:
490133
Frågor? Vi hjälper dig gärna! → Kontaktformulär
-
Beskrivning With the ADDERLink ipeps Dual Access, you can remotely access and control your critical computer hardware over your standar… Mer
-
Egenskaper Features Dual access The unit can be accessed by one local user and four remote users simultaneously. RealVNC server Up to… Mer
-
Tekniska detaljer Technical details Video Supports standard PC, Sun and Mac video modes up to 1600 x 1200 resolutions with scalable viewer.… Mer
-
Datablad
-
Tillbehör
Produktinformation "ADDERLink - AL-IPEPS-DA"

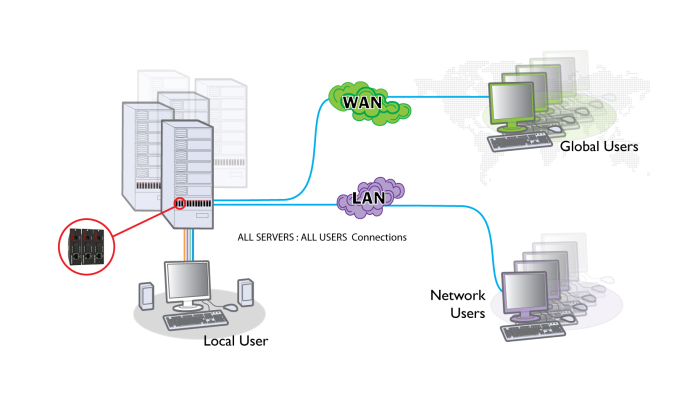

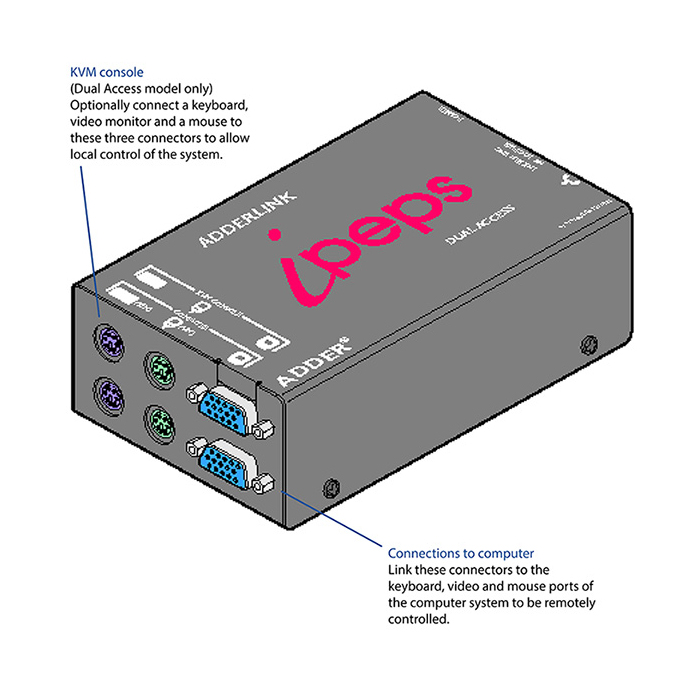

With the ADDERLink ipeps Dual Access, you can remotely access and control your critical computer hardware over your standard IP network. KVM ports are also provided for local console access. KVM connections are VGA and PS/2, and computers outside the network can be remotely and securely accessed using RealVNC client software.
Scope of delivery: ADDERLink AL-IPEPS-DA, power supply unit, rubber feet, rack mount, USB converter plug, KVM cable set
Optional accessories:
- Dual access: The unit can be accessed by one local user and four remote users at a time
- User management: up to 16 user profiles can be created with defined access rights
- Built-in security measures: Compliant with RealVNC universal enterprise security standards (AES 256-bit encryption and RSA 2048-bit public key authentication).
Scope of delivery: ADDERLink AL-IPEPS-DA, power supply unit, rubber feet, rack mount, USB converter plug, KVM cable set
Optional accessories:
- CAB-XSERIES-4WAY-PWR: Squid power cable
- CCSUN-xM: CCSUN converter
- MET-IPEPS-DA-FASCIA: iPEPS Dual Access Rack Plate
Graphic Port: | VGA |
---|---|
Power Supply: | Single AC |
Features
Dual access
The unit can be accessed by one local user and four remote users simultaneously.
RealVNC server
Up to four users can remotely and securely access computers outside your network and create 16 user profiles with defined access rights.
High-performance video via VNC
Real VNC enables video resolutions of up to 1600 x 1200.
USB and Virtual Media support
Designed as a conduit through which data can be transferred, allowing files to be transferred via IP to IPeps and to the target computer via a virtual media port.
Choice of power source
Can be powered via two PS2 or USB cables or independently from an external 5V power source.
Independent operation
Maintain full control, even during start-up, BIOS level or computer crash condition. This works even when the controlled equipment is not operational.
ADDER.NET Enterprise Management Software
Provides a centralised, secure and intuitive user interface for user access management, allowing up to 16 user profiles to be created with defined access rights.
Dual access
The unit can be accessed by one local user and four remote users simultaneously.
RealVNC server
Up to four users can remotely and securely access computers outside your network and create 16 user profiles with defined access rights.
High-performance video via VNC
Real VNC enables video resolutions of up to 1600 x 1200.
USB and Virtual Media support
Designed as a conduit through which data can be transferred, allowing files to be transferred via IP to IPeps and to the target computer via a virtual media port.
Choice of power source
Can be powered via two PS2 or USB cables or independently from an external 5V power source.
Independent operation
Maintain full control, even during start-up, BIOS level or computer crash condition. This works even when the controlled equipment is not operational.
ADDER.NET Enterprise Management Software
Provides a centralised, secure and intuitive user interface for user access management, allowing up to 16 user profiles to be created with defined access rights.
Technical details
Video
Supports standard PC, Sun and Mac video modes up to 1600 x 1200 resolutions with scalable viewer.
Approvals / Compliance
Standards
USB1.1 (low and full speed)
Cable requirements
CATx
Operating temperature
0 - 40 ° C / 32 to 104 ° F.
Connections
Physical design
IPEPS 120 mm / 4.72 (W), 27 mm / 1.06 (H), 75 mm / 2.95 (D), 0.34 kg/0.76 pounds
Power
Two USB cable or independently from an external 5 V power source 100-240 VAC 50 - 60 Hz.
Software Compatibility
All known software and operating systems, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.
Video
Supports standard PC, Sun and Mac video modes up to 1600 x 1200 resolutions with scalable viewer.
Approvals / Compliance
- CE
- FCC
Standards
USB1.1 (low and full speed)
Cable requirements
CATx
Operating temperature
0 - 40 ° C / 32 to 104 ° F.
Connections
- Four PS2 connections
- Ethernet: RJ45 10/100 Auto Sensing
- Video: two VGA connections
Physical design
IPEPS 120 mm / 4.72 (W), 27 mm / 1.06 (H), 75 mm / 2.95 (D), 0.34 kg/0.76 pounds
Power
Two USB cable or independently from an external 5 V power source 100-240 VAC 50 - 60 Hz.
Software Compatibility
All known software and operating systems, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.
