ADDER - DVA
VGA to DVI-D Video Converter
Listpris:
1 500,66 kr*
Pris för återförsäljare - Inloggning
7 stycken tillgängliga, leveranstid: 3 - 5 arbetsdagar
Tillverkarens artikelnummer:
DVA
Vårt artikelnummer:
490414
Frågor? Vi hjälper dig gärna! → Kontaktformulär
Produktinformation "ADDER - DVA"

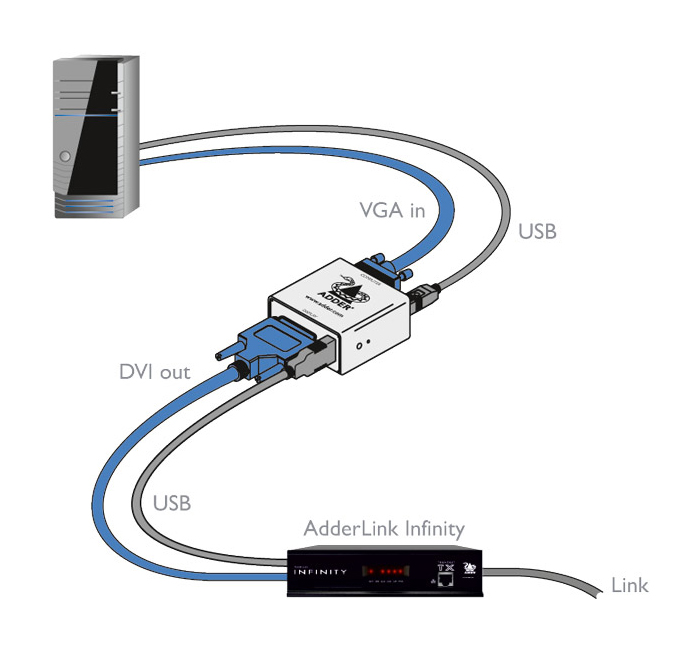

ADDER DVA is a powerful VGA-DVI-D video converter that converts analogue signals to digital. Inline and USB-enabled, this solution fits well with the AdderLink Infinity range. It converts VGA signals up to 1920 x 1200 at 60 Hz into a DVI standard equivalent.
- Analogue-to-digital video conversion up to 1920 x 1200 (max. 165 MHz pixel frequency)
- EDID management for clean operation
- Adjustment control for alignment, tone, sharpness and brightness
- USB power supply with USB pass-through
Features
High-quality conversion from VGA to DVI-D
Adder DVA is a high quality VGA to DVI-D converter that supports most resolutions up to 1920 x 1200 at 60 Hz.
Automatic calibration
The Adder DVA automatically calibrates for horizontal and vertical position. Manual adjustment is also possible via the VCP (Virtual Control Panel) app if required.
EDID management
EDID management is an important element in VGA / DVI-D conversion to ensure that the correct settings are passed to the computer's graphics card.
Pass-through USB power supply
The Adder DVA does not require a separate power supply and instead consumes less than 300 mA when operating from an available USB port on the computer. A USB pass-through port is provided on the Adder DVA, allowing a low-power USB device to be connected. This leaves the same total number of USB ports available for other purposes.
Flash upgradeable
The Adder DVA is flash-upgradeable, allowing custom EDID adjustment for non-standard operations. Upgrades are performed via the USB port.
Virtual Control Panel App via DDC-CI
Adder DVA comes with a Virtual Control Panel (VCP) app that can be used to adjust brightness, tone and sharpness. Vertical and horizontal video orientation can also be adjusted if required. The VCP app includes a test pattern to accurately display the changes. The EDID management options can also be changed and the EDIDs of the monitors displayed.
High-quality conversion from VGA to DVI-D
Adder DVA is a high quality VGA to DVI-D converter that supports most resolutions up to 1920 x 1200 at 60 Hz.
Automatic calibration
The Adder DVA automatically calibrates for horizontal and vertical position. Manual adjustment is also possible via the VCP (Virtual Control Panel) app if required.
EDID management
EDID management is an important element in VGA / DVI-D conversion to ensure that the correct settings are passed to the computer's graphics card.
Pass-through USB power supply
The Adder DVA does not require a separate power supply and instead consumes less than 300 mA when operating from an available USB port on the computer. A USB pass-through port is provided on the Adder DVA, allowing a low-power USB device to be connected. This leaves the same total number of USB ports available for other purposes.
Flash upgradeable
The Adder DVA is flash-upgradeable, allowing custom EDID adjustment for non-standard operations. Upgrades are performed via the USB port.
Virtual Control Panel App via DDC-CI
Adder DVA comes with a Virtual Control Panel (VCP) app that can be used to adjust brightness, tone and sharpness. Vertical and horizontal video orientation can also be adjusted if required. The VCP app includes a test pattern to accurately display the changes. The EDID management options can also be changed and the EDIDs of the monitors displayed.
Technical details
Hardware compatibility
All computers with VGA output
VGA input
The system supports resolutions up to 1920 x 1200 at 60 Hz with pixel frequencies up to 165 MHz.
DVI output
Complies with DVI 1.0 standard. Supports resolutions up to a maximum of 1920 x 1200 at 60 Hz with pixel frequencies up to 165 MHz.
Software compatibility for VCP app
Windows 7 and above with .NET v3.5
Computer connections

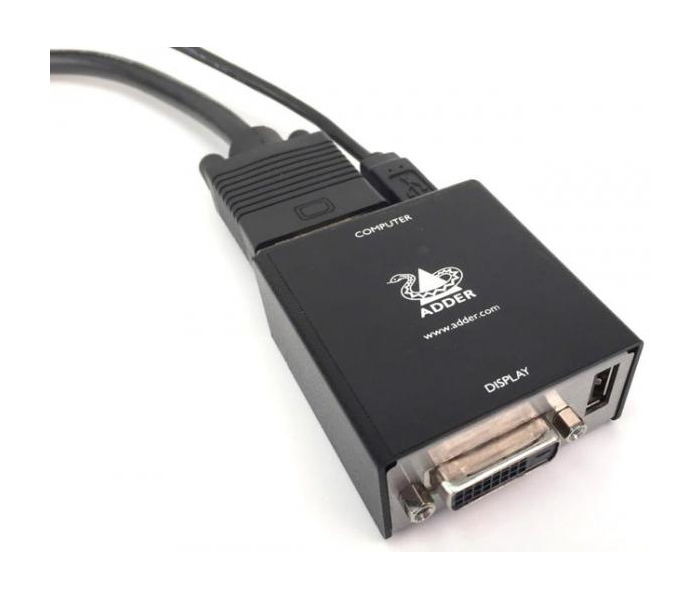

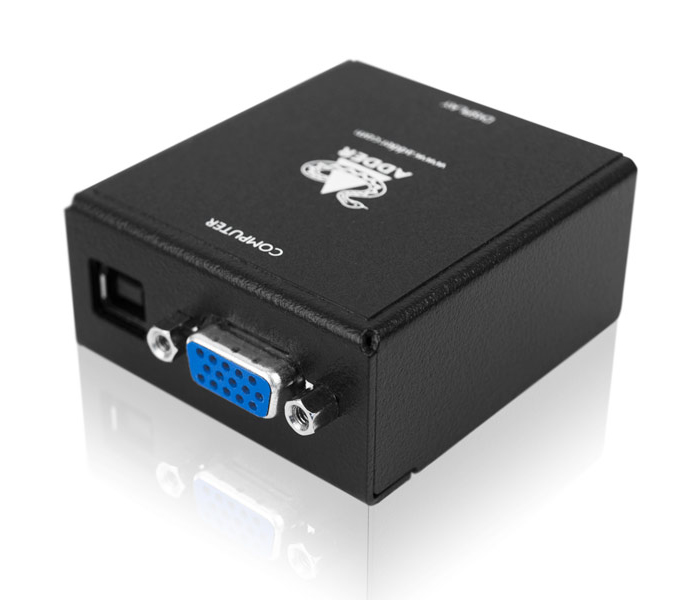

VGA DB15 x 1, USB type B x 1
Peripheral connections
DVI-D x 1, USB type A x 1
Physical design
Compact housing, robust metal construction. 55 mm (25 mm), 25 mm (h), 70 mm (2.75 inch (d)), 0.1 kg (0.2 lbs).
Power
USB power supply - less than 300 mA (1.5 W)
Operating temperature
0 to 40ºC / 32 to 104ºF
Approvals
CE, FCC
Hardware compatibility
All computers with VGA output
VGA input
The system supports resolutions up to 1920 x 1200 at 60 Hz with pixel frequencies up to 165 MHz.
DVI output
Complies with DVI 1.0 standard. Supports resolutions up to a maximum of 1920 x 1200 at 60 Hz with pixel frequencies up to 165 MHz.
Software compatibility for VCP app
Windows 7 and above with .NET v3.5
Computer connections
VGA DB15 x 1, USB type B x 1
Peripheral connections
DVI-D x 1, USB type A x 1
Physical design
Compact housing, robust metal construction. 55 mm (25 mm), 25 mm (h), 70 mm (2.75 inch (d)), 0.1 kg (0.2 lbs).
Power
USB power supply - less than 300 mA (1.5 W)
Operating temperature
0 to 40ºC / 32 to 104ºF
Approvals
CE, FCC
